C600 Electro-hydraulic Operating Table

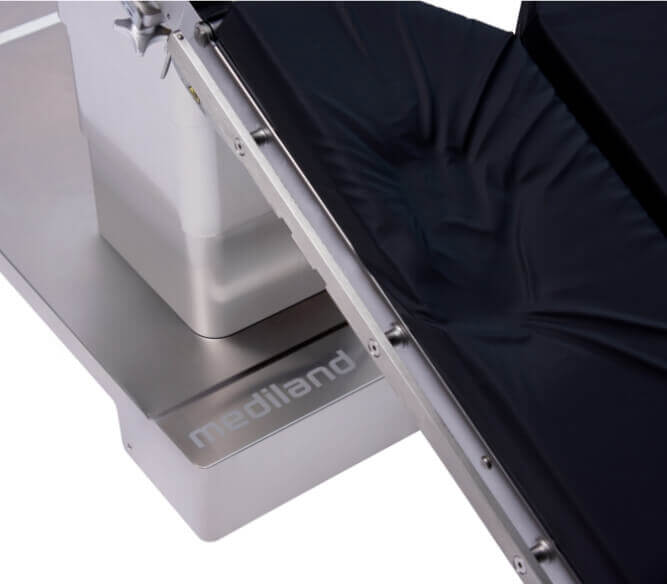

C800 Electro-hydraulic Operating Table
Providing precise positioning and speed control with a patented high-end hydraulic system to improve workflow. Tailored for all-purpose surgeries.
CE
ISO9001
ISO13485
cratos force
the intelligent Speed Control System

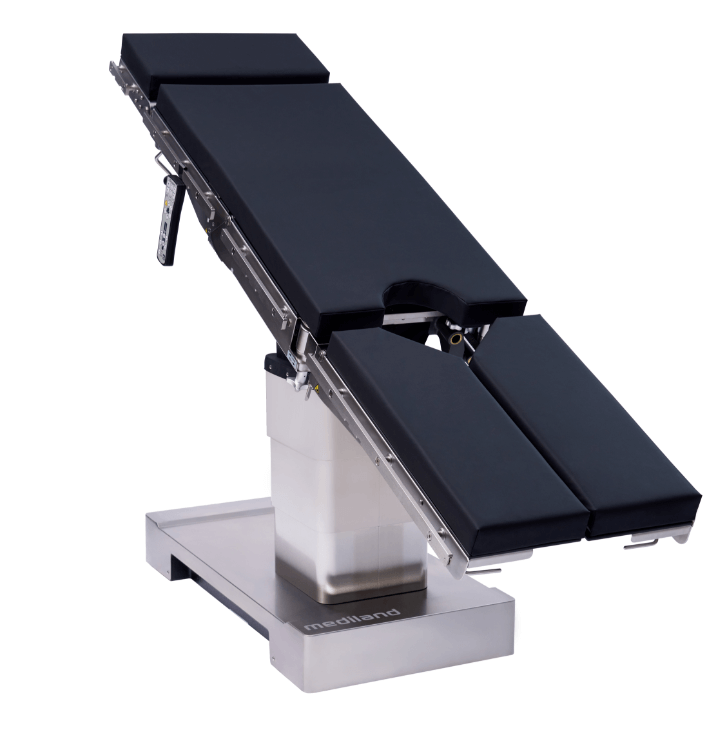

C800 is the revolution of the proven C Series of operating tables, which has been known for its quality, stability, and flexibility on the market for more than decades.
From its compact and delicate appearance to its distinctive features, C800 allows more precise positioning and speed control to improve work-flow and safety of patients.
Features
- Patented hydraulic speed control system.
- Interchangeable operating table head and leg section.
- Superior table height total stroke.

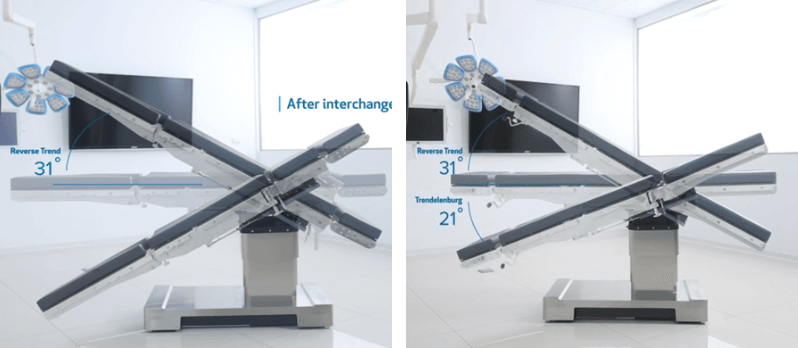

- Trend/Reverse Trend asymmetric angle design.
- Numerous positioning memory functions (Wireless tablet limited)
1
A Dynamic Experience By Innovative Speed Control System:
Cratos Force
The core of the operating table adopts high-end driving technology, showing precise positioning and speed control.
2

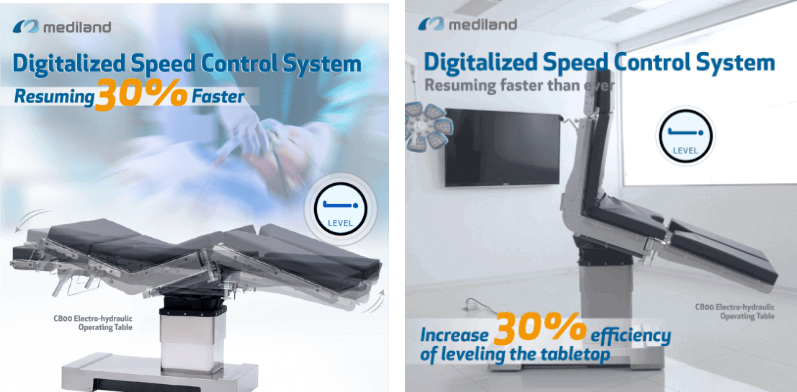

Resuming Leveling
Position 30% Faster
Cratos Force increases the work efficiency by 30% of Auto-leveling movement and levels the position while urgent surgery needs.
3

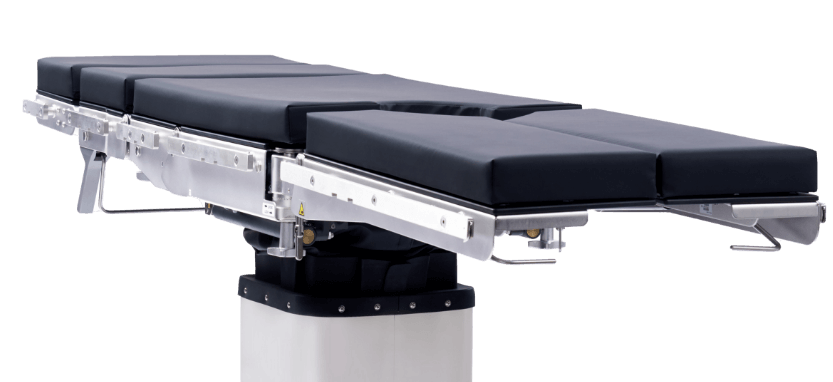

Interchanging The Tabletop Position For
Various Surgeons Need
Interchangeable Head plate and Leg plate can achieve tabletop forward position and reverse position to meet the surgical requirements of different departments and different positions.
4

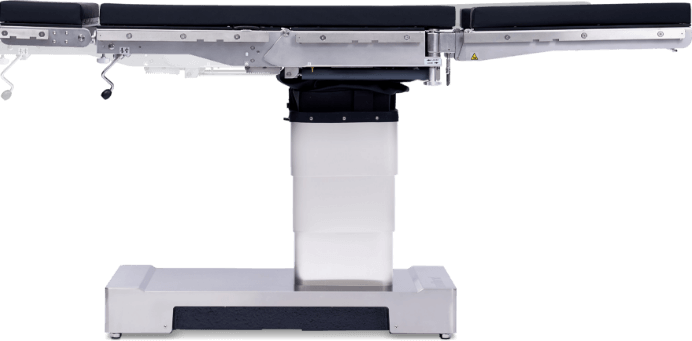

Excellent Imaging Clarity And Convenient Access
The electric tabletop provides longitudinal shift radioscopy access of 1,153mm with positioning towards the head direction.
5

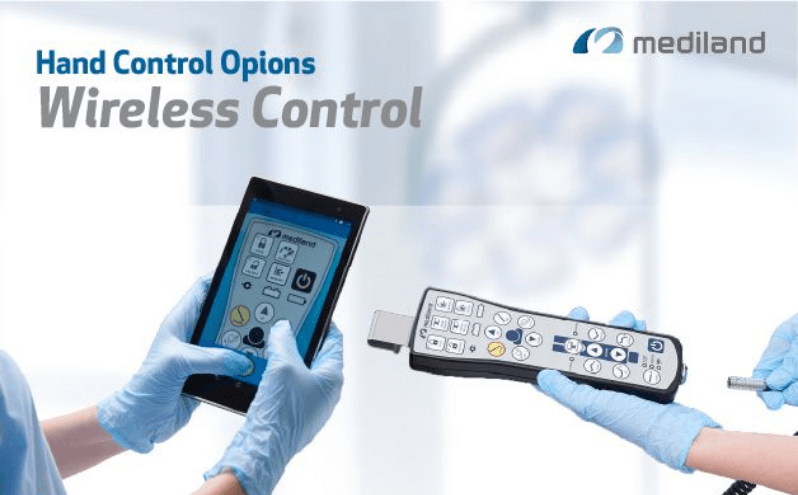

Feel In Control
Operating the table motion and speed at any position in the operating room by the remote hand control and tablet. Intuitive and backlit hand controller provides memory functions of numerous surgical positions and one-button control to recall the stored position.
6

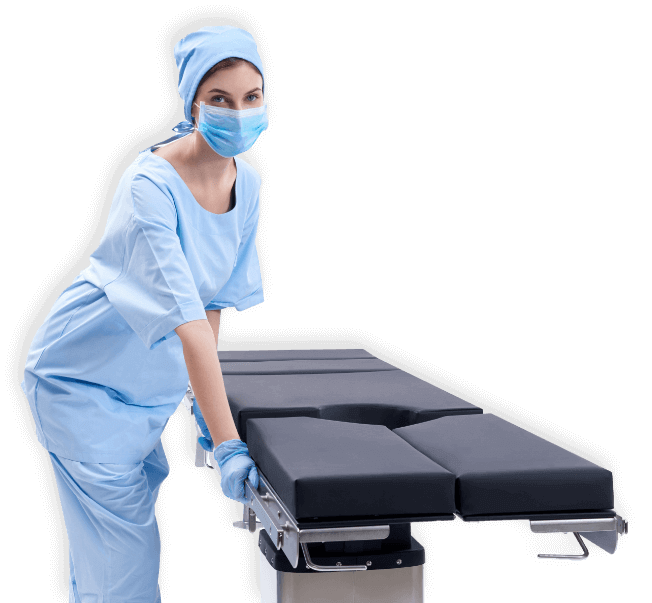

Sheer Appearance And Effortless Movement Design
Cratos Force increases the work efficiency by 30% of Auto-leveling movement and levels the position while urgent surgery needs.
| Specification |
|---|
| Table Length |
| Table Width (without side rails) |
| Table Height (without mattress) |
| Trendelenburg / Reverse Trend |
| Lateral Tilt (L / R) |
| Head Section (Up / Down) |
| Shoulder Section (Up / Down) |
| Back Section (Up / Down) |
| Leg (Up / Down) |
| Leg (Open / 2 plates) |
| Flex / Reflex |
| Weight Capacity |
| C800 | C800K | C800E |
|---|---|---|
| 2,072 mm | ||
| 520 mm | ||
| 600~1,100 mm | ||
| 21° / 31° | 21° / 31° | 31° / 31° (After interchanged) |
| 20° / 20° | ||
| 60° / 90° | ||
| N/A | N/A | N/A |
| 80° / 50° | ||
| 20° / 90° | ||
| 0°~180° | N/A | |
| 230° / 100° | ||
| 454 kg / 1000lbs | ||
| Configuration |
|---|
| Extra Shoulder Section (E) |
| Carbon Fiber Built-In Kidney Elevator (K) 120mm |
| Electrical Sliding Longitudinal 300mm |
| Auto-Leveling |
| C800 | C800K | C800E |
|---|---|---|
| ● | ||
| ● | ||
| ● | ● | ● |
| ● | ● | ● |
