Maximize radiolucent area with reverse orientation.

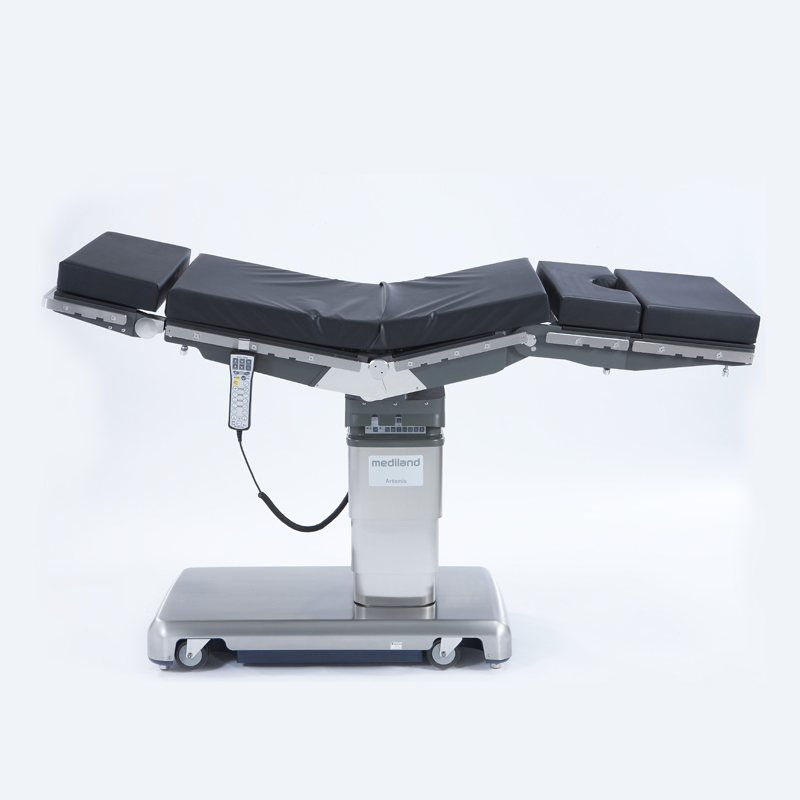

Artemis Electro-hydraulic Operating Table

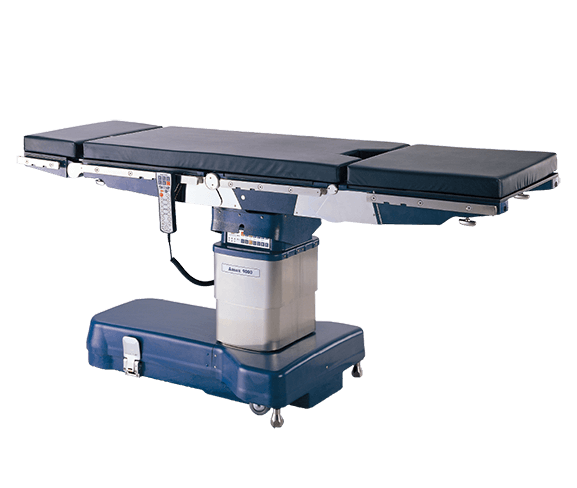

Amax9000 Electro-hydraulic Operating Table
Ensure uninterrupted operation with manual foot pump.
Empowering Operating Room with Operational Ease
Exceptional Surgical Site Access Tailored to User Demands
Amax9000 is engineered with trusted quality and robust structure. The powered leg plate can be bent 105 degrees downward to enable the optimal access of the surgeon without the need for detachment. With a built-in 14" internal X-ray cassette tunnel design from the head section to the pelvis section facilitates X-ray photographing without ever disturbing the patient's position.
1

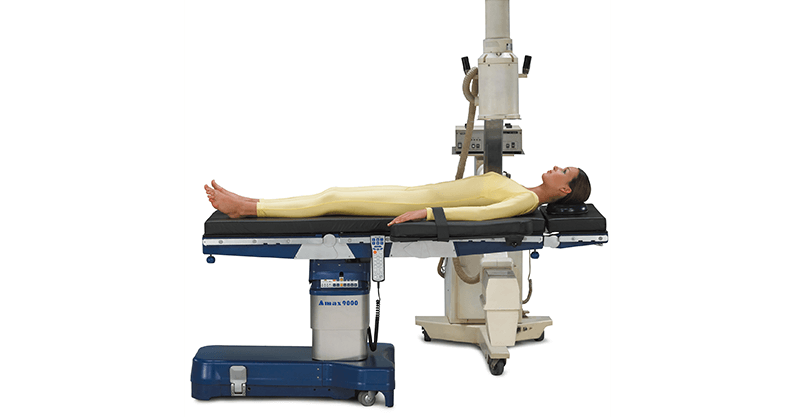

Table Orientation Design for More Surgical Space
The head section can be reversed and attached to the leg section for versatile surgical patient positioning, offering more space for a generous X-ray imaging area.
2

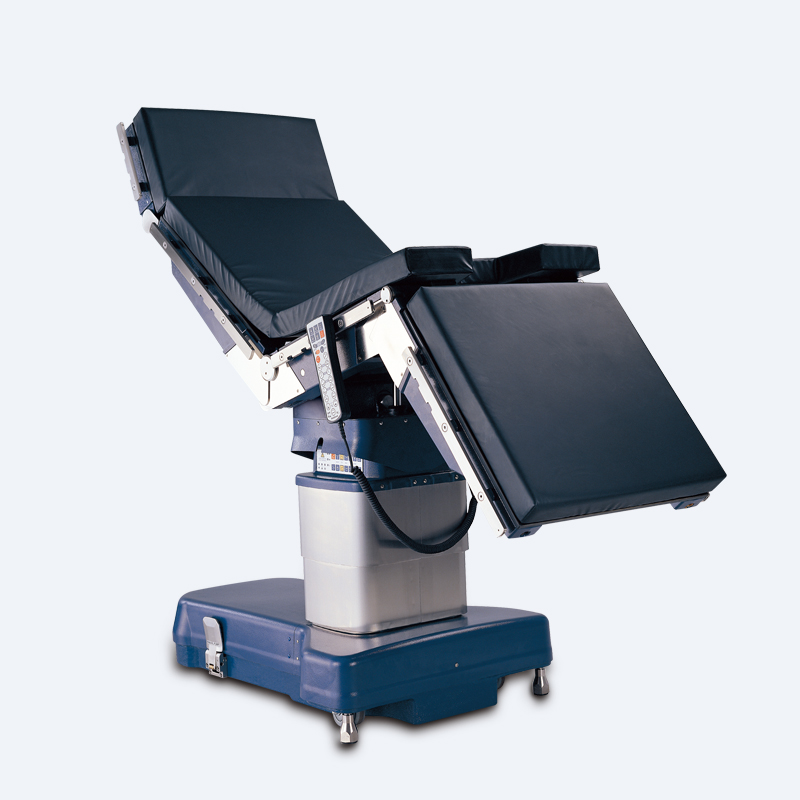

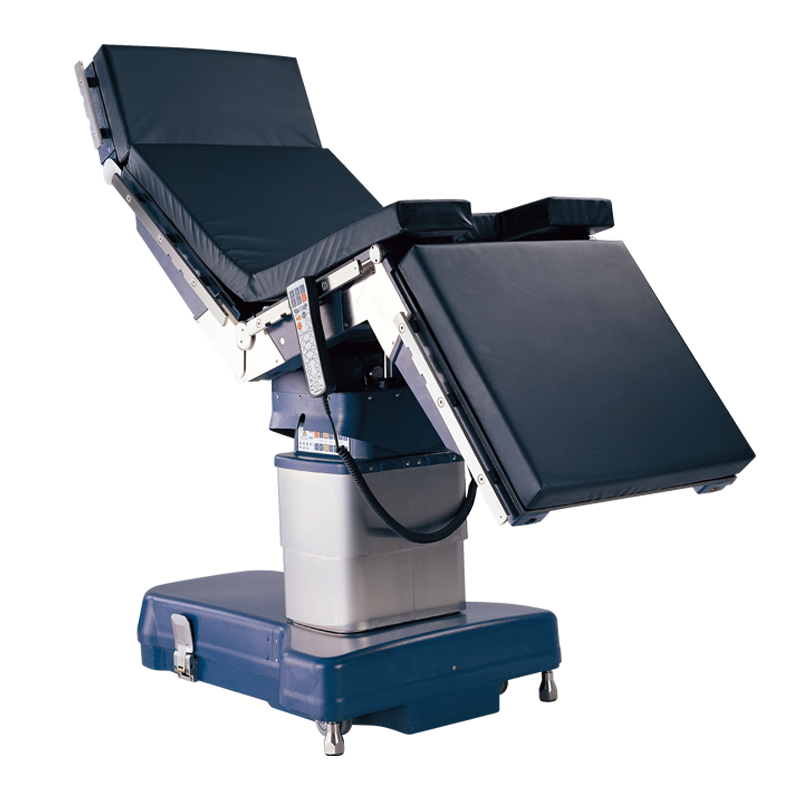

The Powered Leg without the Detachment
The powered leg 105° downward provides ample space for lower body surgery without the need to remove the leg plate. This design optimizes surgical access, allowing the surgical team to achieve maximum proximity to the surgical field.
3

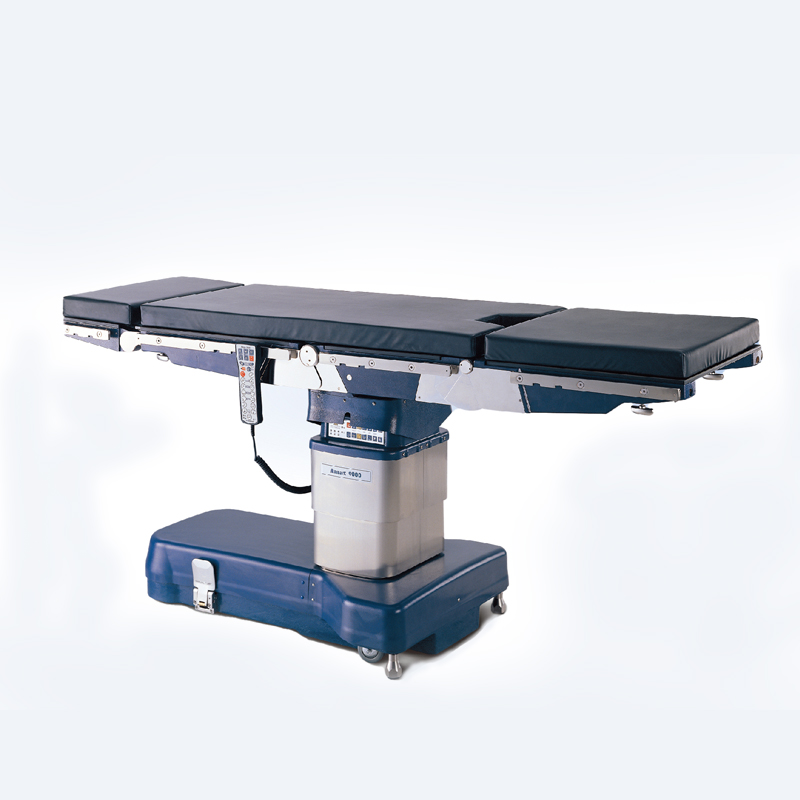

T-Shape Base and Central Column
Central Column engineered with SUS 304 stainless steel for easy cleaning. T-Shape Base provides the surgical team with ample foot room during long-term standing surgeries.
4

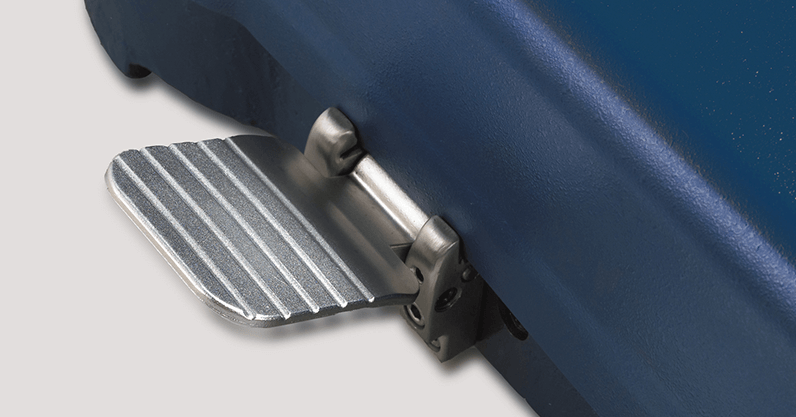

The Table Movement is Powered by a Foot Pump
The table can be operated by the manual foot pump even without an external power to support special scenarios such as military and disaster medicine.
5
Simplify Patient Positioning with Electric Kidney Elevator
The electric kidney elevator can be adjusted up to 120 mm for precise adjustments, achieving outstanding surgical site exposure and enhanced access for the surgical team.
6
The Pressure Management Mattress with the Multi-layer Structure
The mattress is made of antibacterial and antistatic materials, providing excellent pressure distribution. It conforms to the patient body contours, the foam inside of the mattress manages pressure underneath the patient to alleviate the risk of bedsores.
7

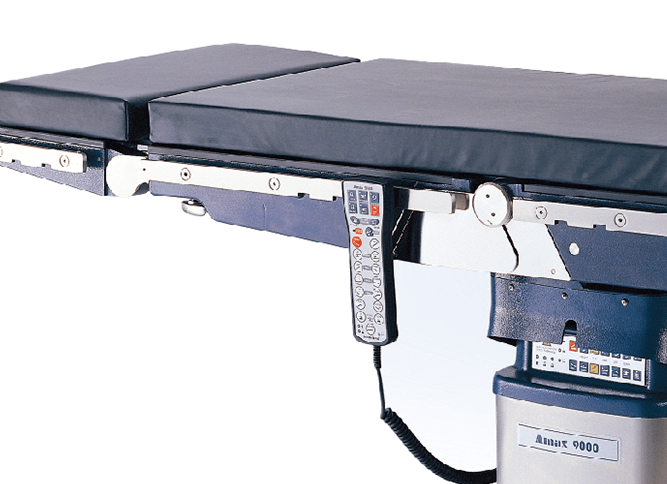

Backup Control System for Use in Emergencies
The battery powered auxiliary control on the column serves as a reliable emergency backup. It enables continuous operation of all movements in case of primary hand control failure.
| Specification |
|---|
| Table Length |
| Table Width (without side rails) |
| Table Height (without mattress) |
| Trendelenburg / Reverse Trend |
| Lateral Tilt (L / R) |
| Head Section (Up / Down) |
| Back Section (Up / Down) |
| Leg (Up / Down) |
| Flex / Reflex |
| Kidney Elevator |
| Weight Capacity |
| Amax9000 | |
|---|---|
| 1,958 mm | |
| 530 mm | |
| 680~1,120 mm | |
| 30° / 30° | |
| 20° / 20° | |
| 90° / 90° | |
| 68° / 40° | |
| 80° / 105° | |
| 216° / 124° | |
| 0~120 mm | |
| 454 kg / 1000 lbs | |
