With ultra-low tabletop height and excellent weight capacity, C600 is a versatile operating table and strongly compatible with various accessories for all kinds of surgical needs.
CE
ISO9001
C600 Electro-hydraulic Operating Table
C800 Electro-hydraulic Operating Table
Patented speed control system for precise positioning in every adjustment.
Patented Control System
Core hydraulic system enables precise adjustment

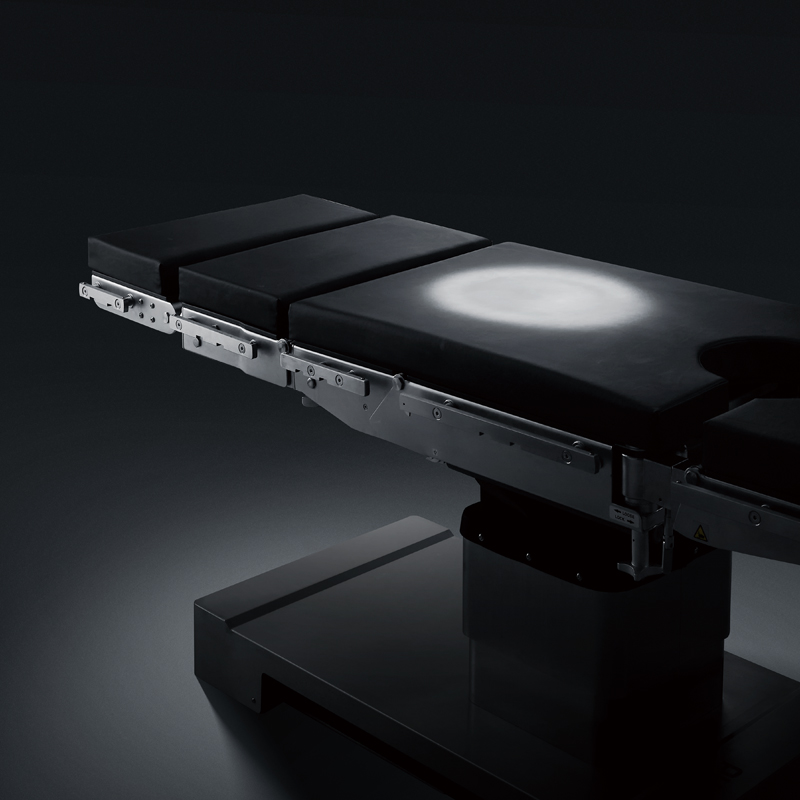

C800 featuring the high-end hydraulic system with patented intelligent speed control provides smooth and precise adjustments of positioning angles. Surgeons can perform intuitive operations quickly by swinging upper and lower hand control and tablet, achieving efficient table fine-tuning. The table with reverse mode increases C-arm coverage, while the optional 360° carbon fiber extension ensures high-resolution, interference-free X-ray imaging quality.
1

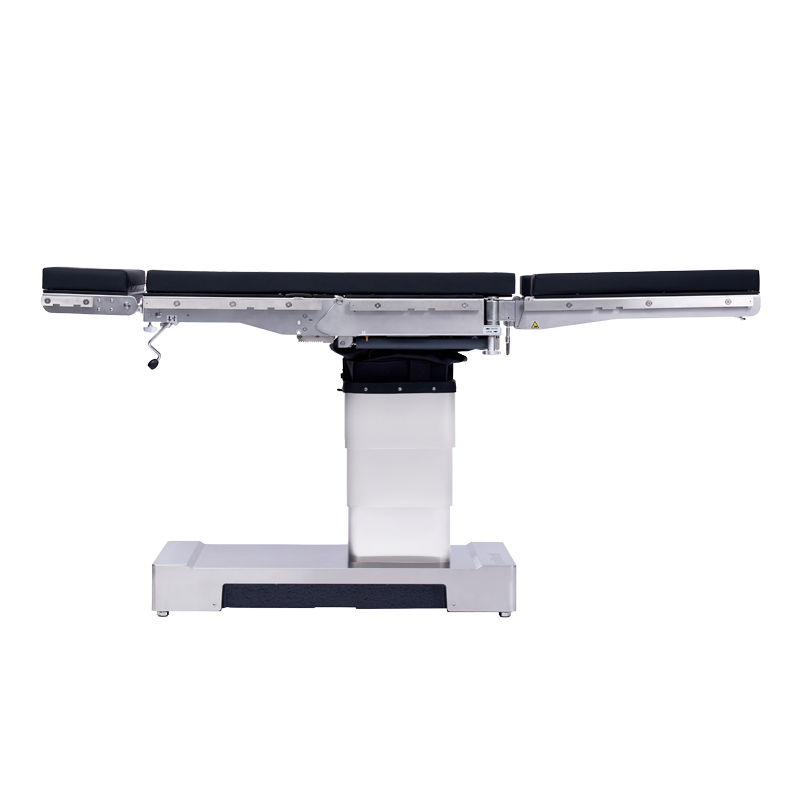

One-Touch Auto-Leveling for Enhanced Efficiency
The table minimizes time during auto-leveling movements in emergency situations, while providing a stable, gentle, and gradual stop.
2
Longitudinal Slide & Flexible Reverse Orientation for Maximum C-arm Coverage
The tabletop provides 300 mm longitudinal shift radioscopy access of 1,153mm with positioning towards the head direction. Interchangeable head plate and leg section can achieve tabletop forward position and reverse position (C800E model only) to provide more flexibility for surgical team space or X-ray imaging coverage.
3

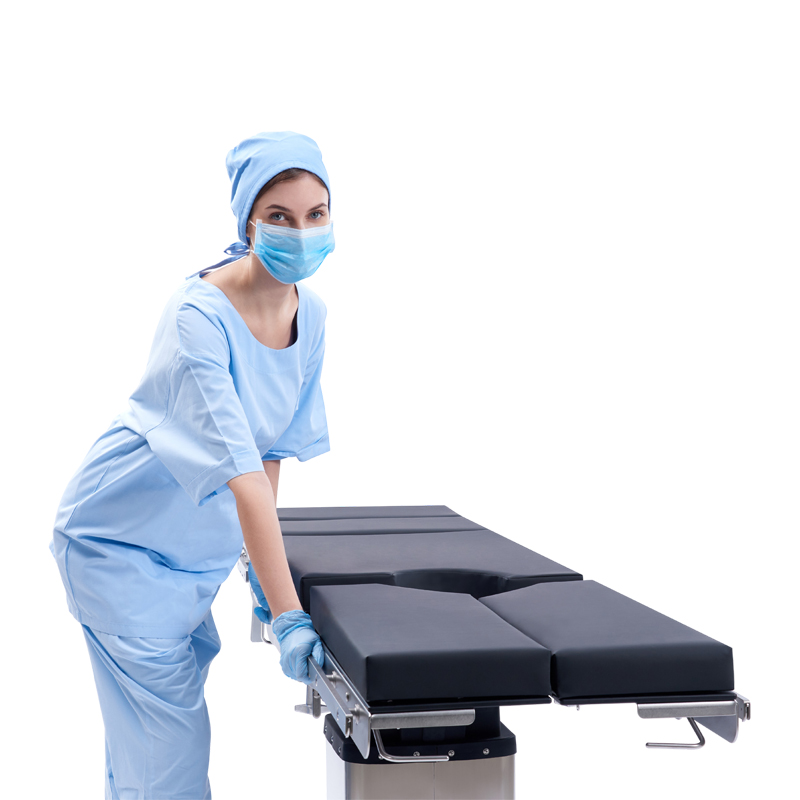

Slim Base Design with Effortless Mobility
The compact stainless-steel base structure offers optimal foot access for the surgeon, which is easy to clean. The 4 caster wheels allow the table to be moved and repositioned effortlessly.
4
Carbon Fiber Kidney Elevator Allows Unobstructed C-arm Access
C800 (K model) with built-in carbon fiber kidney elevator provides excellent radiolucency and foldable magnet gear bar minimal interference with C-arm imaging.
5
Carbon Fiber 360° Translucent Board Offers X-ray Transparency
The Carbon Fiber 360° Translucent Board (option) offers maximum 1,768 mm X-ray coverage, and edge bevel design enhances image clarity.
6
Anti-collision System Prevents Table Colliding other Section
The table features a built-in anti-collision alert system. When a potential collision risk is detected, the table automatically decelerates and emits warning sounds, ensuring operational safety.
7
User-friendly Control Design
Operating the table motion and speed at any position in the operating room by hand control, remote hand control and tablet. Intuitive and backlit hand controller for visibility, 70 seconds auto power-off for enhanced operational safety.
8
Simple and Rapid Response of Memory Function
The hand control provides one position memory. The tablet (option) provides 99 memory functions of numerous surgical positions and one-button control to recall the stored position.
| Specification / Model |
|---|
| Extra Shoulder Section (E) |
| Carbon Fiber Kidney Elevator (K) (120mm) |
| Electrical Sliding (S) (300mm) |
| Auto-leveling (D) |
| Table Length |
| Table Width (without side rails) |
| Table Height (without mattress) |
| Trendelenburg / Reverse Trend |
| Lateral Tilt (L / R) |
| Head Section (Up / Down) |
| Shoulder Section (Up / Down) |
| Back Section (Up / Down) |
| Leg (Up / Down) |
| Leg (Open / 2 Plates) |
| Flex / Reflex |
| Weight Capacity |
| C800 | C800K | C800E |
|---|---|---|
| ● | ||
| ● | ||
| ● | ● | ● |
| ● | ● | ● |
| 2,072 mm | ||
| 520 mm | ||
| 600~1,100 mm | ||
| 21° / 31° | 21° / 31° | 31° / 31° (After interchanged) |
| 20° / 20° | ||
| 60° / 90° | ||
| N/A | N/A | 40° / 50° |
| 80° / 50° | ||
| 20° / 90° | ||

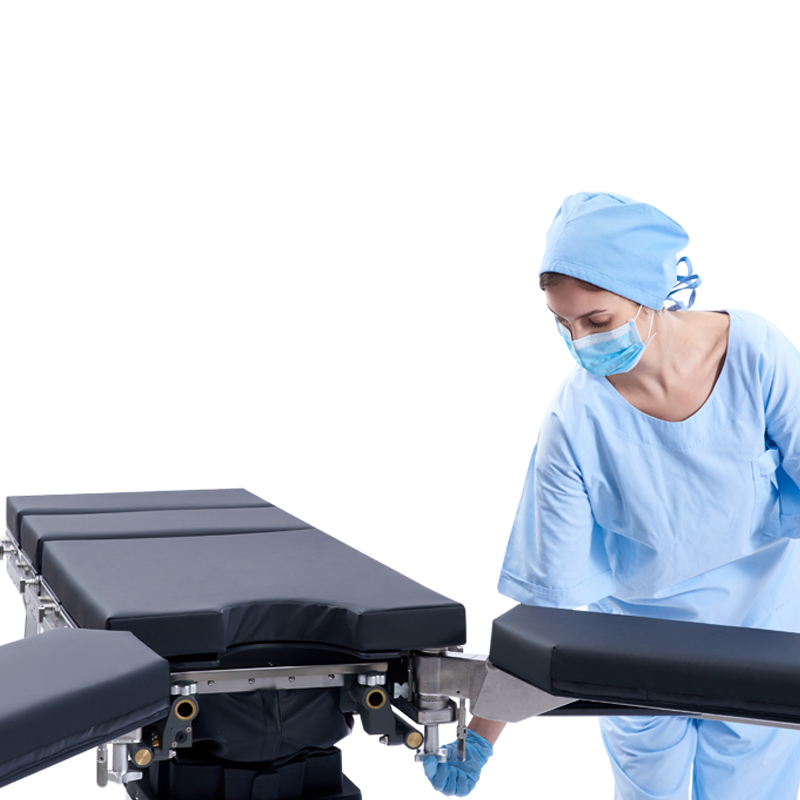

| 0°~180° | ||
| 230° / 100° | ||
| 454 kg / 1000 lbs | ||
