Off-set column design, Smart P2000 offers maximum C-arm coverage and optimum access without any table adjustment and repositioning.
CE
ISO9001
Smart P2000 Electro-hydraulic Surgical Table
Gmax800 Electric Surgical Table
A fully electrically-driven surgical table offering voiceless synchronized movements enables the adjustment of clinical positions quickly.
CE
ISO9001
ISO13485
fully electrically-driven
Silent & synchronized movements
Gmax800 is designed to be the most flexible electric mobile operating table in its class.
The silent design, synchronized movements, and ergonomic compact base provide urological, gynecological and orthopedic surgeons ideal working experience.
Features
- Stainless steel and compact base complying with ergonomic design
- Flexible and large castors for ideal mobility
- Silent design
- Support of synchronized movements to achieve clinical positions quickly.
- 300mm longitudinal sliding towards to head section allows optimized C-arm access.
1

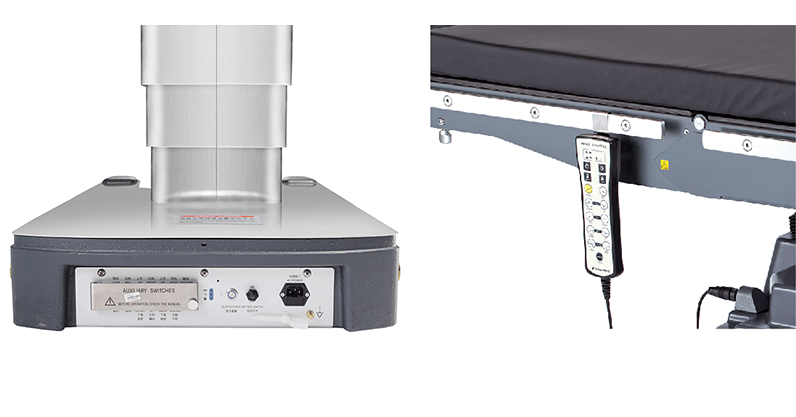

Fully Electric Operation by Intuitive Hand Control or Auxiliary Switch at the Base
2

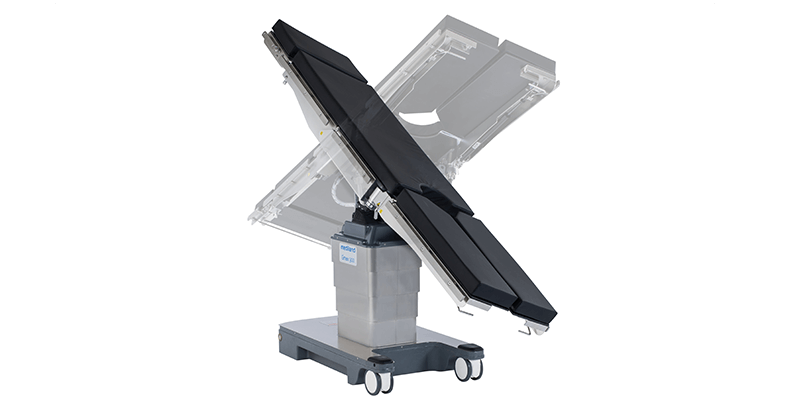

Silent, Synchronized Movements Achieve Fast Adjustments of Clinical Positions
3

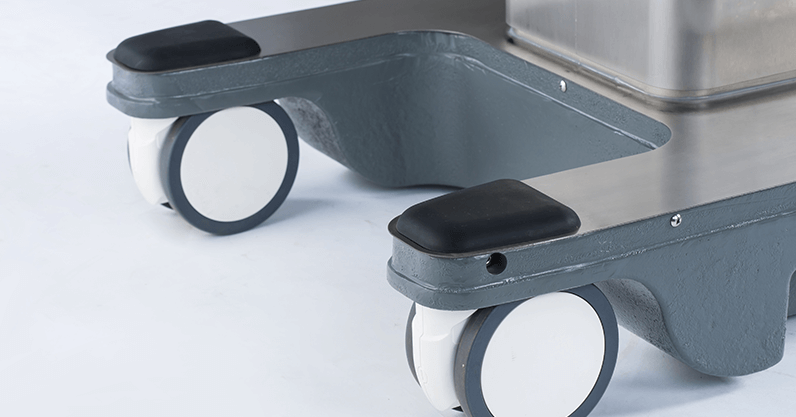

Ideal Mobility by Flexible Castors
4

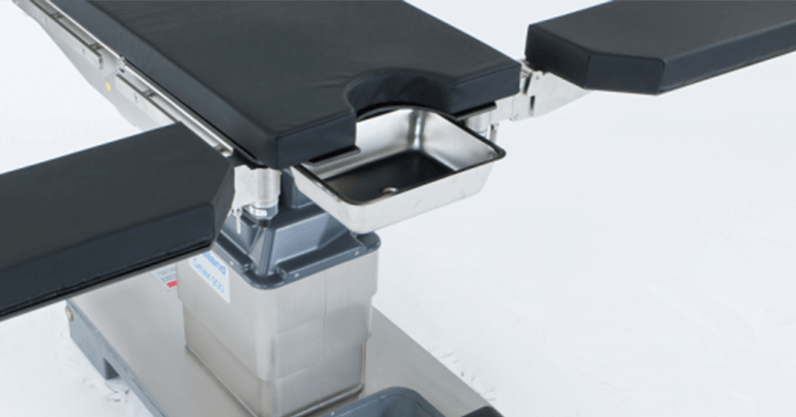

Ergonomical and compact base
Providing a better operating position for urological and gynecological surgeries.
5
300mm of Longitudinal Electrical Sliding
Offers Flexible Patient Positioning for C-arm Access
| Specification |
|---|
| Table Length |
| Table Width (without side rails) |
| Table Height (without mattress) |
| Trendelenburg/Reverse Trend |
| Lateral Tilt (L / R) |
| Head Section (Up / Down) |
| Back Section (Up / Down) |
| Longitudinal Sliding |
| Leg (Up / Down) |
| Leg (Open / 2 plates) |
| Weight Capacity |
| Gmax800 | |
|---|---|
| 2,082 mm | |
| 535 mm | |
| 650~1,000 mm | |
| 30° / 30° | |
| 20° / 20° | |
| 60° / 90° | |
| 80° / 30° | |
| 0~300mm (To head) | |
| 24° / 90° | |
| 0°~180° | |
| 362 kg / 800lb | |
Accessories
A VARIETY OF ACCESSORIES FOR YOUR CHOOSE
