The 50mm table height stroke satisfies the expected performance for surgery.

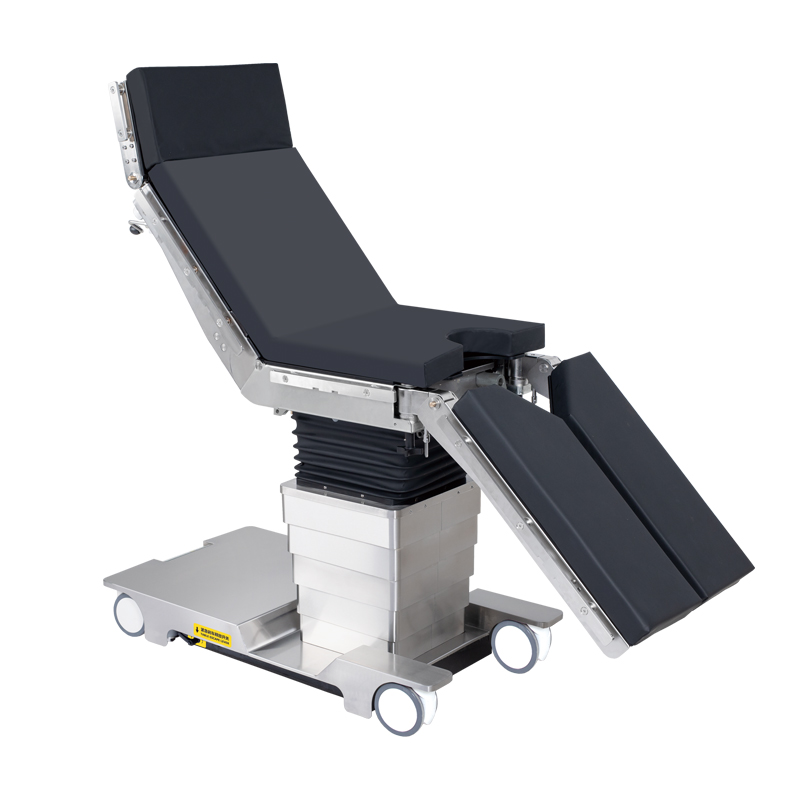

C660 Electro-hydraulic Operating Table
C600 Electro-hydraulic Operating Table
With ultra-low tabletop height and excellent weight capacity.
Highly versatile operating table
A wide range of table height and travel distance
The C600 is a universal operating table designed for essential clinical functions and intuitive operation. Featuring an ultra-low height and various configurations, it adapts perfectly to any surgical specialty. Its high accessory compatibility, versatile design, and optimized surgical access ensure ease of use and improved ergonomic comfort for the surgical team.
1
The Ultra-Low Profile of Table Height
The tabletop can be located in an ultra-low position from 52cm to 102 cm for both sitting and standing positions, which provide a comfortable surgical experience (Applicable to N model).
2
High Load Capacity Shows Stability and Safety
With a maximum overall load of 454 kg and a special design of floor lock, the table enables extremely high stability operation.
3

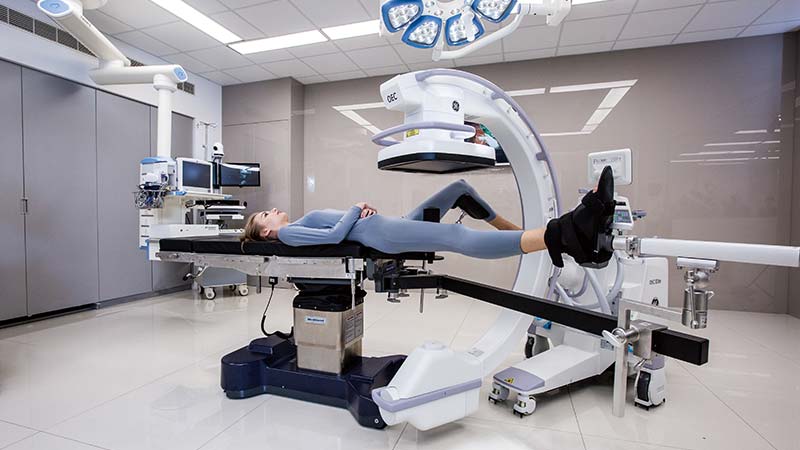

Up to 30cm Longitudinal Electrical Sliding
Offers longitudinal electrical sliding towards the head section of up to 30cm thus allowing better access for C-arm and X-ray fluoroscopy range without the need to reposition the patient (Applicable to S model).
4
Excellent Radiolucent Carbon Fiber Kidney Elevator
Carbon-fiber kidney elevator gives extra lift to the patient's side for specific surgeries, ensures the best possible access to the surgical site. It also guarantees radiolucent coverage through the entire tabletop.
5
The Concave Base Enhances Surgical Spaces
The table base design allows the surgical team to get close to the patient, providing ample foot room and flexible movement during surgery.
6

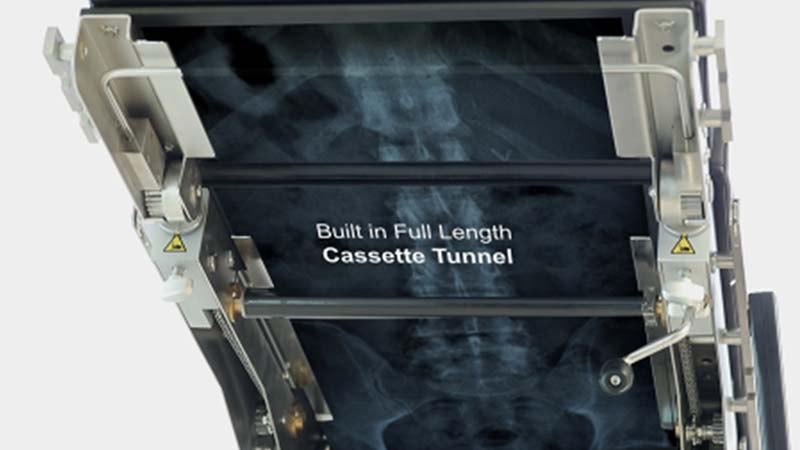

Equipped with Internal X-ray Cassette Tunnels
A built-in 14" internal X-ray cassette tunnels design from the head section to the pelvis section facilitates X-ray photographing.
7
A Variety of Specific Operating Table Accessories
Offering carbon fiber or stainless steel Orthopedic Extension Devices for choice to perform surgeries at 520~1,020 mm of stable tabletop elevation height. With the special design of joints, more flexible positioning and convenient operation are offered during demanding procedures.
| Specification/Model |
|---|
| Carbon Fiber Kidney Elevator (K) |
| Electrical Sliding (S) |
| Auto-leveling (D) |
| Low Profile Table top (N) |
| Shoulder Section (40° / 50°) (E) |
| Table Height (without mattress) |
| Trendelenburg/Reverse Trend |
| Kidney Elevator |
| Longitudinal Sliding |
| Table Length |
| Table Width (without side rails) |
| Lateral Tilt (L / R) |
| Head Section (Up / Down) |
| Back Section (Up / Down) |
| Leg (Up / Down) |
| Leg (Open / 2 plates) |
| Flex / Reflex |
| Weight Capacity |
| C600K | C600K/S | C600K/SD | C600K/SND | C600E/SND | C600E/S | |
|---|---|---|---|---|---|---|
| ● | ● | ● | ● | |||
| ● | ● | ● | ● | ● | ||
| ● | ● | ● | ||||
| ● | ● | |||||
| ● | ● | |||||
| 680~1,120 mm | 520~1,020 mm | 680~1,120 mm | ||||
| 30° / 30° | 26° / 26° | 30° / 30° | ||||
| 120 mm | N/A | |||||
| N/A | 300 mm | |||||
| 2,072 mm | ||||||
| 520 mm | ||||||
| 20° / 20° | ||||||
| 60° / 90° | ||||||
| 80° / 50° | ||||||
| 20° / 90° | ||||||
| 0°~180° | ||||||
| 230° / 100° | ||||||
| 454 kg / 1000lbs | ||||||
