Maximize radiolucent area with reverse orientation.
Artemis Electro-hydraulic Operating Table
Ares8000 Modular Operating Table
Achieve maximum flexibility with lightweight carbon fiber modules.
modular design
Lightweight carbon fiber modules

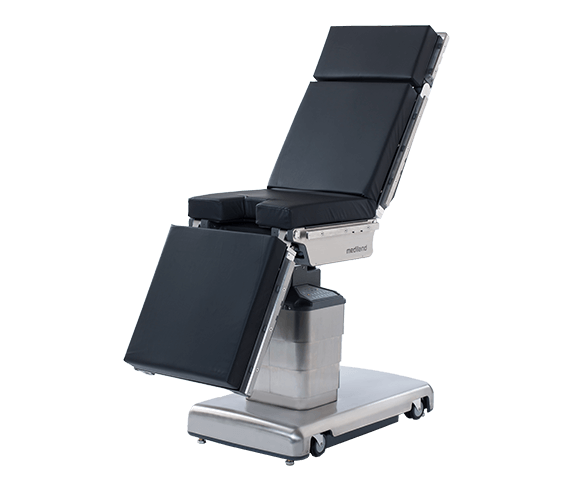

Ares8000 is a high-performance modular and motorized hydraulic operating table with outstanding features for any surgical specialty. The modular base structure can assemble with different modules into various multi-segment configurations. Just exchanging a few modules, the OR team can tailor the table to each operation and patient.
1

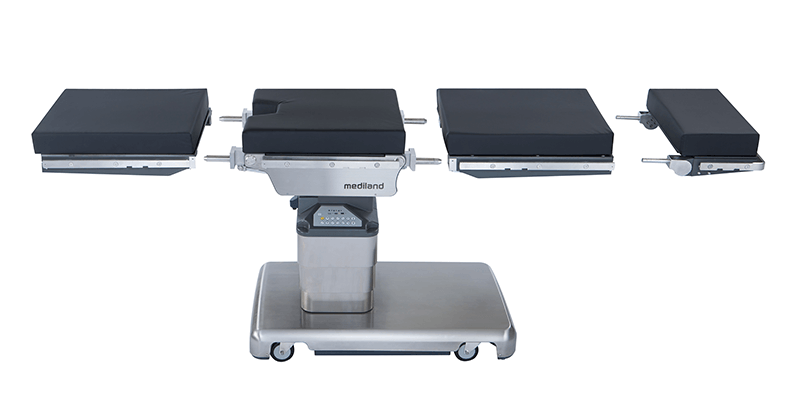

Modular Base and Tabletop Structure for
Multi-Configurations
The flexible combination of modules of the Ares8000 operating table offers a variety of surgery applications
2

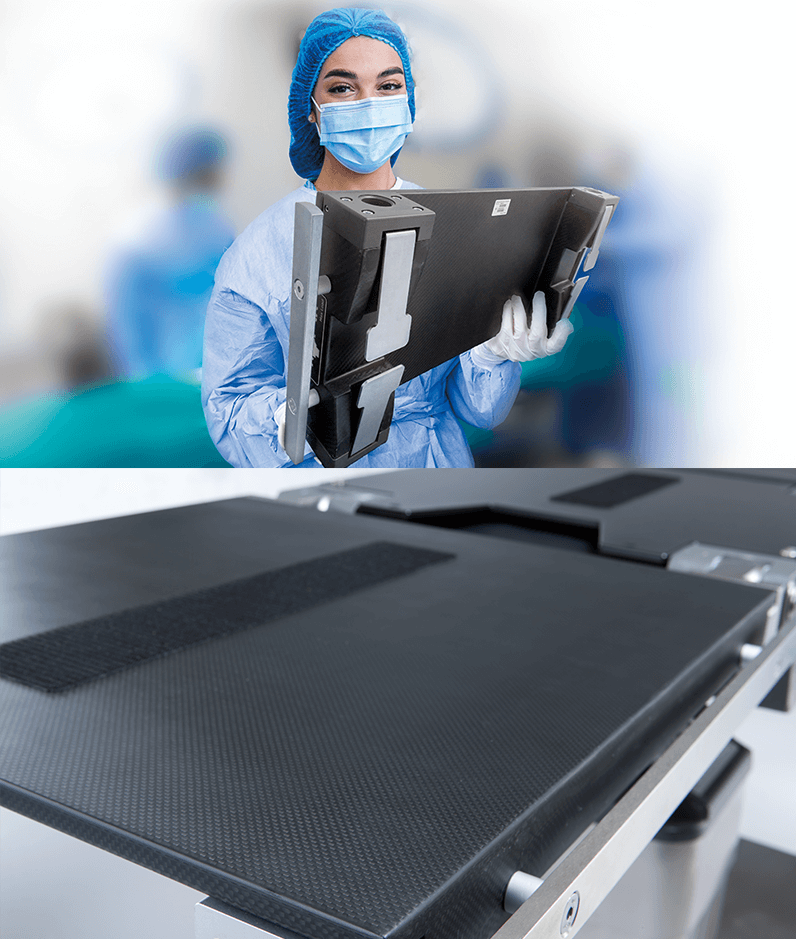

Carbon Fiber Modules Increase the X-ray Fluoroscopy Area
Lightweight carbon fiber modules provide superior radiolucency. Designed for effortless attachment, it maximize flexibility and efficiency of workflow. It can reduce physical load for the medical staff while they equip the table.
3

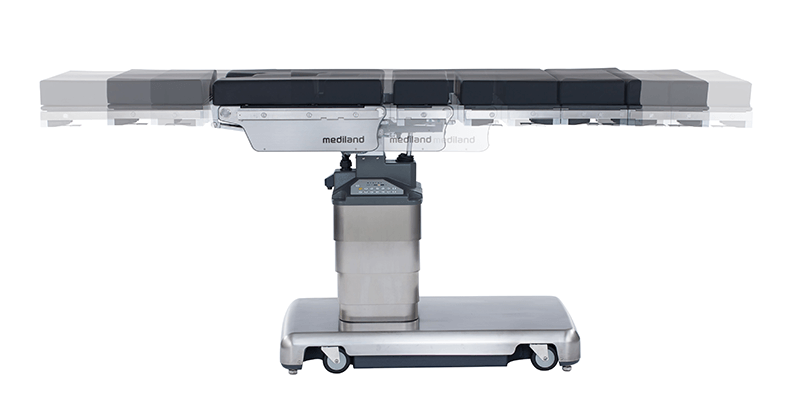

Up to 40cm Longitudinal Sliding for Generous C-arm Space
40cm of longitudinal electrical sliding provides ample C-arm imaging coverage for both head and leg sections without the need to reposition the patient. It provides imaging coverage of 1,095 mm at the head section and 885 mm at the leg section.
4

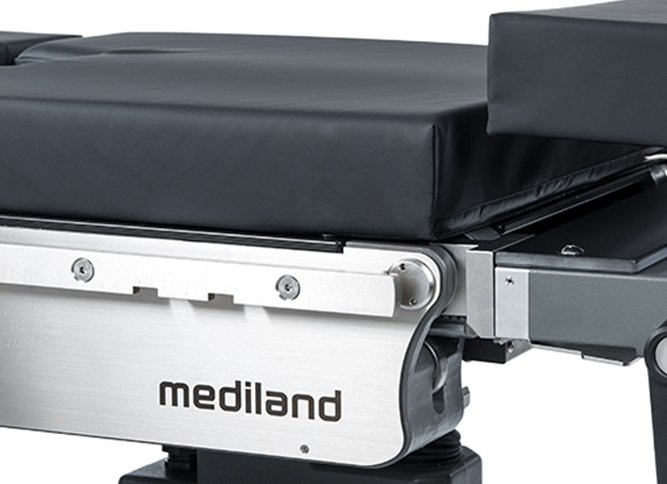

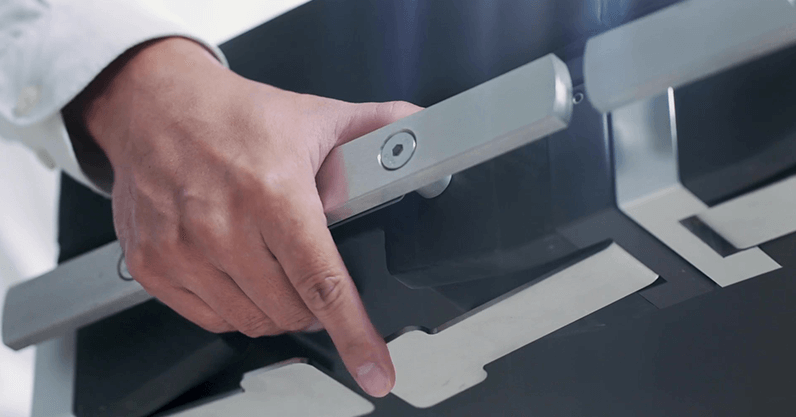

Easy SmartLink System for Quick and Effortless Change
Lightweight modular components can be equipped and changed quickly and easily to the surgery needs by SmartLink System. The modules will be secured by an automatic locking mechanism that ensures working safety.
5

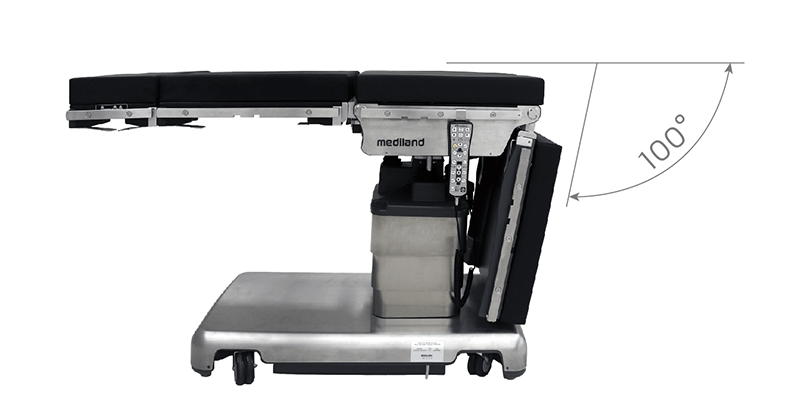

Flexible Leg Plates Application to Optimize Workflow
Without being removed, the leg section of Ares8000 can be bent down 100 degrees effortlessly to allow easy and smooth access for specific surgery.
6
Auxiliary Control Ensure Uninterrupted Operation
Featuring an intuitive interface, tilted auxiliary control on the column allows the surgical team to adjust table in case of hand control failure.
7

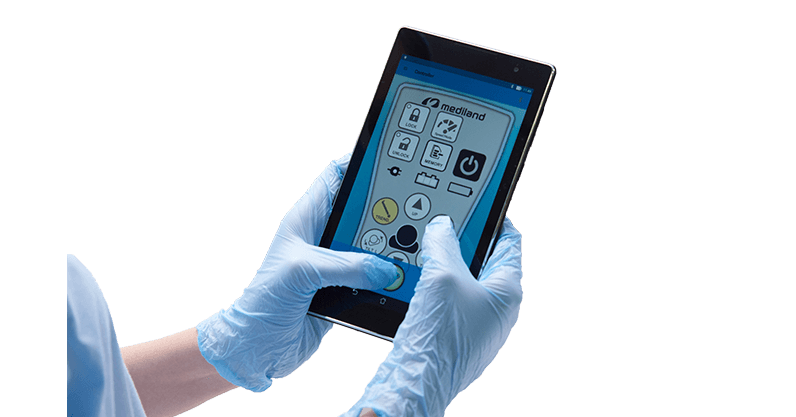

Wireless Tablet Provide Numerous Positioning Memory Functions
All table movements can be maneuvered by the wireless (option) tablet from a distance. Unlimited tabletop positioning memory function and one-button to recall the stored positions are included to optimize the working procedures.
| Specification / Model |
|---|
| Table Length |
| Table Width (without side rails) |
| Table Height (without mattress) |
| Trendelenburg / Reverse Trend |
| Lateral Tilt (L / R) |
| Head Section (Up / Down) |
| Back Section (Up / Down) |
| Leg (Up / Down) |
| Flex / Reflex |
| Longitudinal Sliding |
| Weight Capacity |
| Ares8000 | |
|---|---|
| 2,101 mm | |
| 536 mm | |
| 660~1,080 mm | |
| 30° / 30° | |
| 20° / 20° | |
| 90° / 90° | |
| 80° / 40° | |
| 20° / 100° | |
| 220° / 125° | |
| 0~400 mm | |
| 454 kg / 1000 lbs | |
Accessories
A VARIETY OF ACCESSORIES FOR YOUR CHOOSE
