Achieve maximum flexibility with lightweight carbon fiber modules.

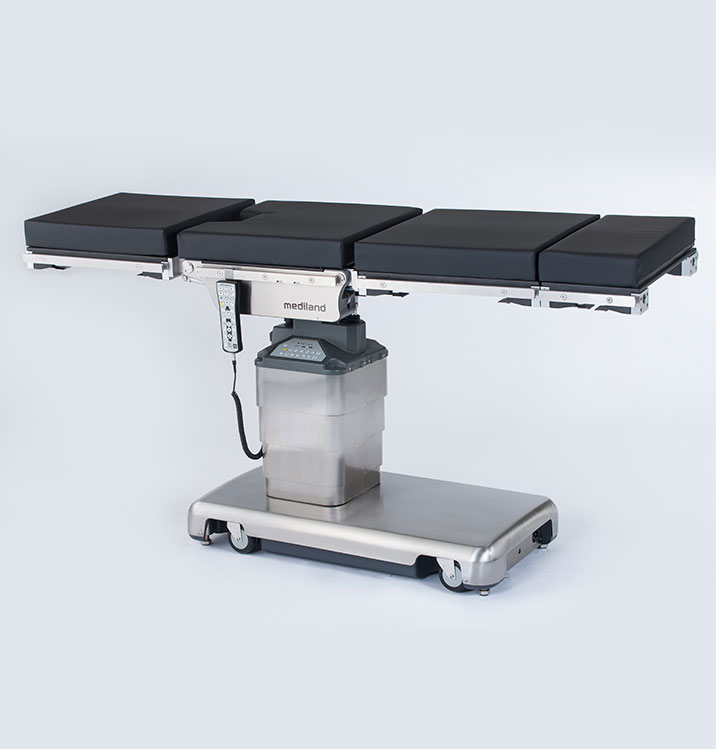

Ares8000 Modular Operating Table
Artemis Electro-hydraulic Operating Table
Maximize radiolucent area with reverse orientation.
Flexibility for Multiple Disciplines
Easily set up and position patients for enhanced site access
Artemis is a versatile electro-hydraulic operating table that seamlessly blends elegant design with structural stability. Its reverse orientation mode provides exceptional C-arm coverage, meeting the rigorous demands of various surgical specialties while enhancing workflow efficiency and precision. With the optional wireless tablet control and its unlimited positioning memory system, Artemis achieves flexible maneuvering and a high-efficiency operational experience.
1
Reverse Orientation Mode for Superior Imaging Area

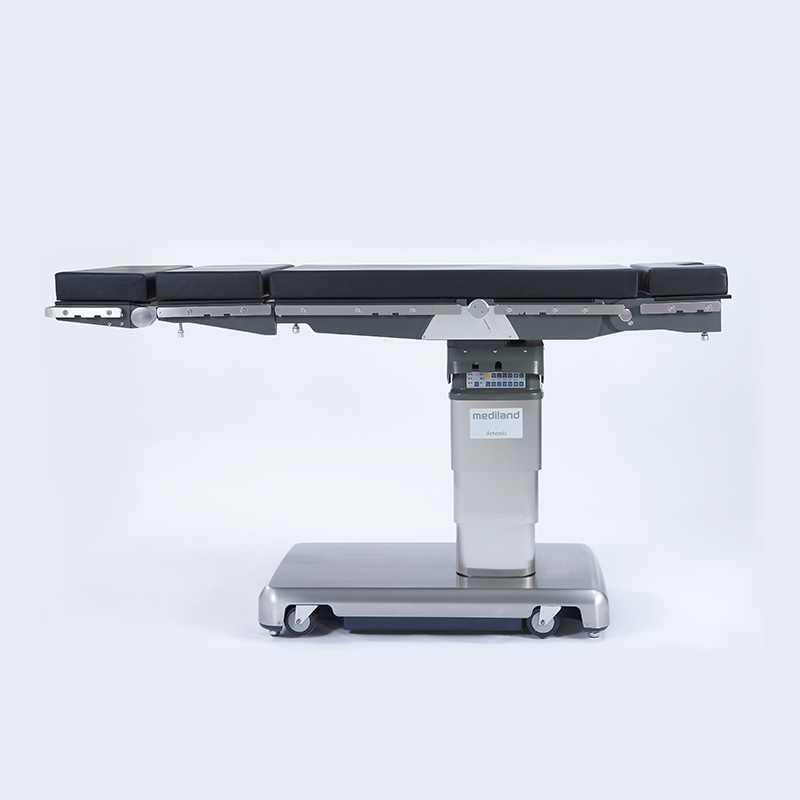

The interchangeable head and leg sections offer superior flexibility for patient positioning and an imaging area of 1,163 mm. With the optional extension section, the imaging coverage can be expanded to 1,373 mm, providing ample, unobstructed imaging for C-arm access.
2
Pelvic Section Space for Specialized Applications
The pelvic section workspace is configured with an appropriate area to meet the operational requirements of healthcare professionals, guaranteeing the precision of imaging and irradiation processes.
3
Optimal Patient Positioning for Electric Kidney Elevator
An electric kidney elevator designed to optimize patient positioning. It enhances surgical site exposure and excellent surgical access.
4
8cm Mattress Provides Robust Support
The mattress is 8cm thick and made of antibacterial and antistatic materials. The pressure management mattress features multiple layers of different density padding to alleviate underneath the patient. Engineered for durability, the mattress maintains its shape even under heavy use, optimizing its service life.
5
Superior Omnidirectional Mobility for 4 Swivel Casters
The four swivel casters make it easier to move the table in any direction, ensuring both rapid OR setup and efficient relocation of the operating table.
6

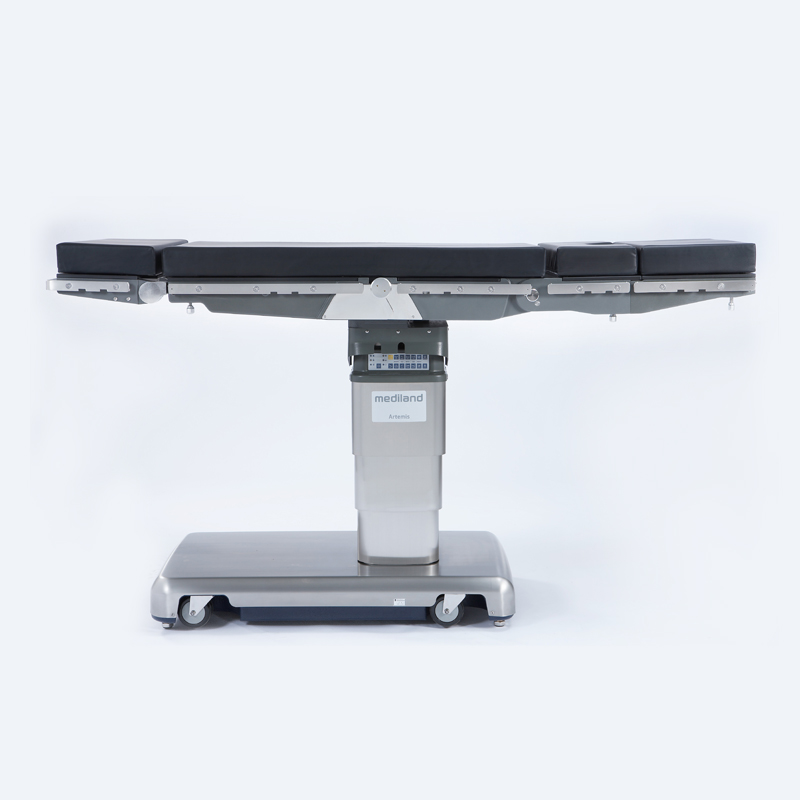

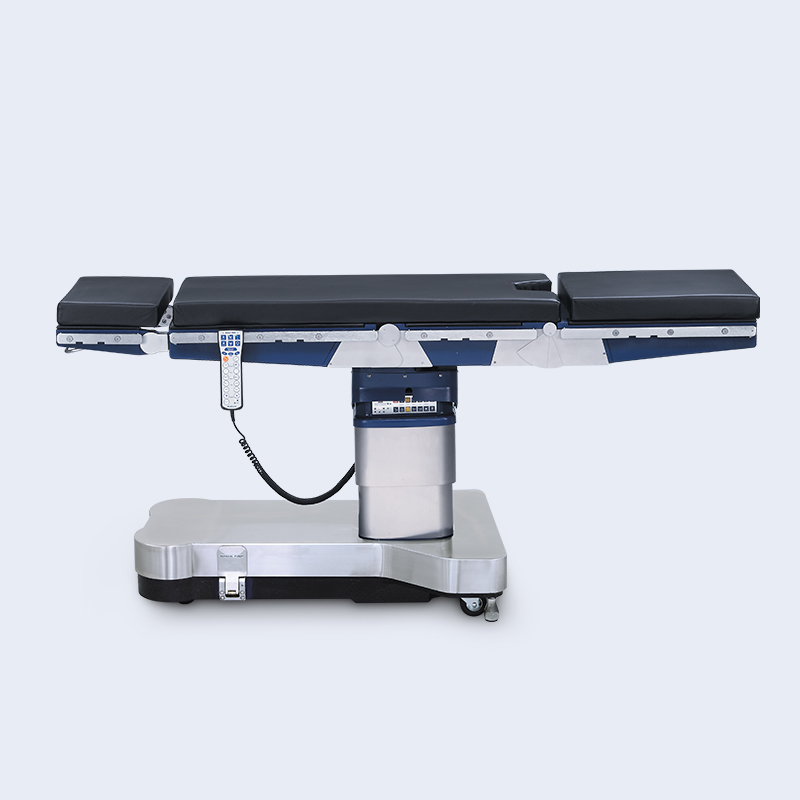

Efficiency in Critical Moments with Leveling Function
The one button with auto-leveling function enables simultaneous operation of all joints to rapidly reach a horizontal state. Especially in an emergency situation, it optimizes positioning efficiency and minimizes the risk of patient sliding.
7
Wide Table Height Adjustment Range
Featuring a wide height adjustment range from 700 mm to 1,140 mm, the table provides superior surgical access for both sitting and standing surgical procedures.
8
Wireless Tablet Control (Optional) with Intuitive User Interface
All table movements can be maneuvered by the wireless tablet from a distance. Unlimited table positioning memory function to increase the working efficiency.
| Specification |
|---|
| Table Length |
| Table Width (without side rails) |
| Table Height (without mattress) |
| Trendelenburg / Reverse Trend |
| Lateral Tilt (L / R) |
| Head Section (Up / Down) |
| Back Section (Up / Down) |
| Leg (Up / Down) |
| Flex / Reflex |
| Carbon Fiber Kidney Elevator |
| Weight Capacity |
| Artemis | |
|---|---|
| 1,956 mm | |
| 534 mm | |
| 700~1,140 mm | |
| 30° / 30° | |
| 20° / 20° | |
| 90° / 90° | |
| 68° / 40° | |
| 80° / 100° | |
| 220° / 120° | |
| 0~120 mm | |
| 454 kg / 1000 lbs | |
