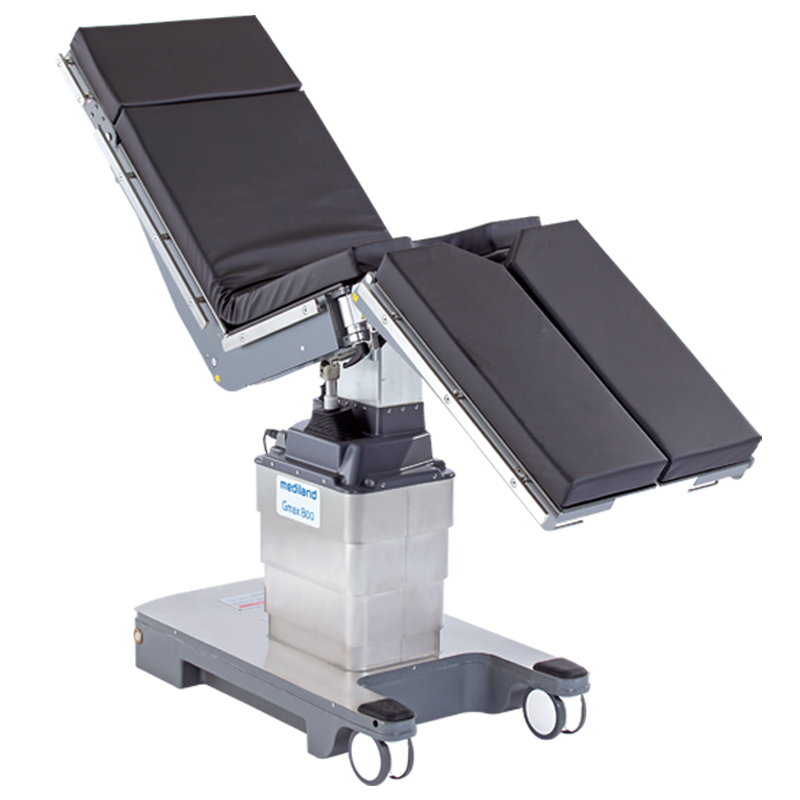

Gmax800 Electric Operating Table
The voiceless synchronized movements enable the adjustment of positions quickly.
Fully electrically-driven
Silent and smooth table movements

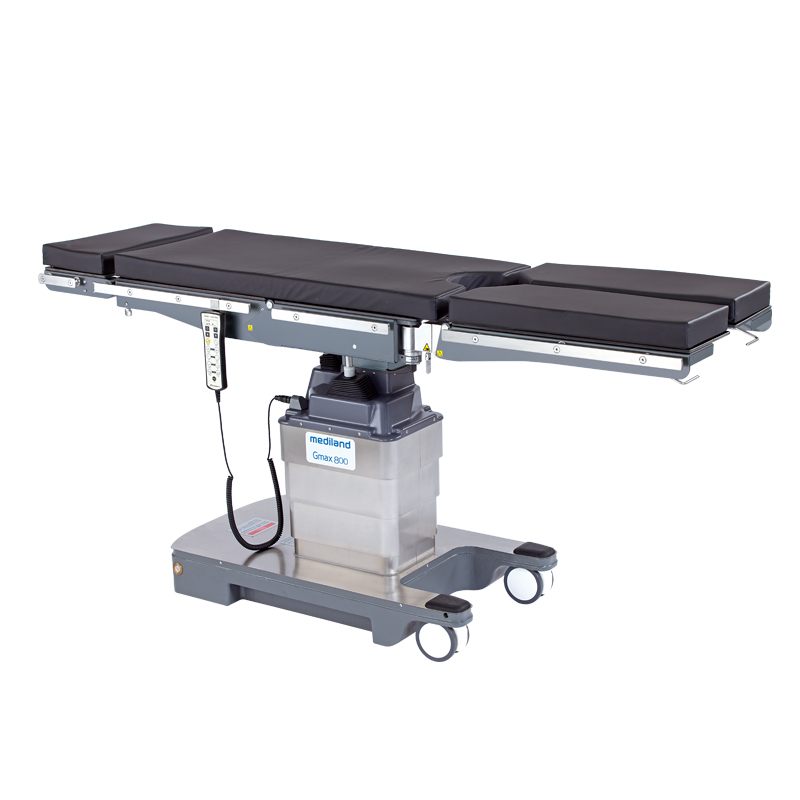

Gmax800 features an ultra-silent design, utilizing both the hand control and auxiliary switch to achieve smooth movements. Its simultaneous articulation movement significantly enhances the efficiency of patient positioning. Furthermore, the one-touch leveling function allows the table to minimize time during auto-leveling movements in emergency situations, ensuring a stable and safe operational experience for specialized surgical needs.
1
300mm of Longitudinal Electrical Sliding
Offers flexible patient positioning for C-arm access and achieves a wider X-ray coverage area.
2
Stainless-steel Base Structure and Flexible Casters
The stainless-steel base and column design provide a stable and impact-resistant structure, enabling excellent infection control . The large-diameter casters provide the surgical team with effortless mobility, allowing for rapid table positioning.
3
Ergonomic and Large legroom
The leg sections can be abducted up to 180° and concave base design provides an optimal operating position, which is particularly beneficial for specialized surgeries.
4
Auxiliary Switch Maintain Table Movement
The auxiliary switch in the base for the backup system ensures uninterrupted table operation.
| Specification /Model |
|---|
| Table Length |
| Table Width (without side rails) |
| Table Height (without mattress) |
| Trendelenburg / Reverse Trend |
| Lateral Tilt (L / R) |
| Head Section (Up / Down) |
| Back Section (Up / Down) |
| Leg (Up / Down) |
| Leg (Open / 2 Plates) |
| Longitudinal Sliding |
| Weight Capacity |
| Gmax800 | |
|---|---|
| 2,082 mm | |
| 535 mm | |
| 650~1,000 mm | |
| 30° / 30° | |
| 20° / 20° | |
| 60° / 90° | |
| 80° / 30° | |
| 30° / 90° | |
| 0°~180° | |
| 300 mm | |
| 362 kg / 800 lbs | |
Accessories
A VARIETY OF ACCESSORIES FOR YOUR CHOOSE
