A fully electrically-driven surgical table offering voiceless synchronized movements enables the adjustment of clinical positions quickly.
CE
ISO9001
Gmax800 Electric Surgical Table

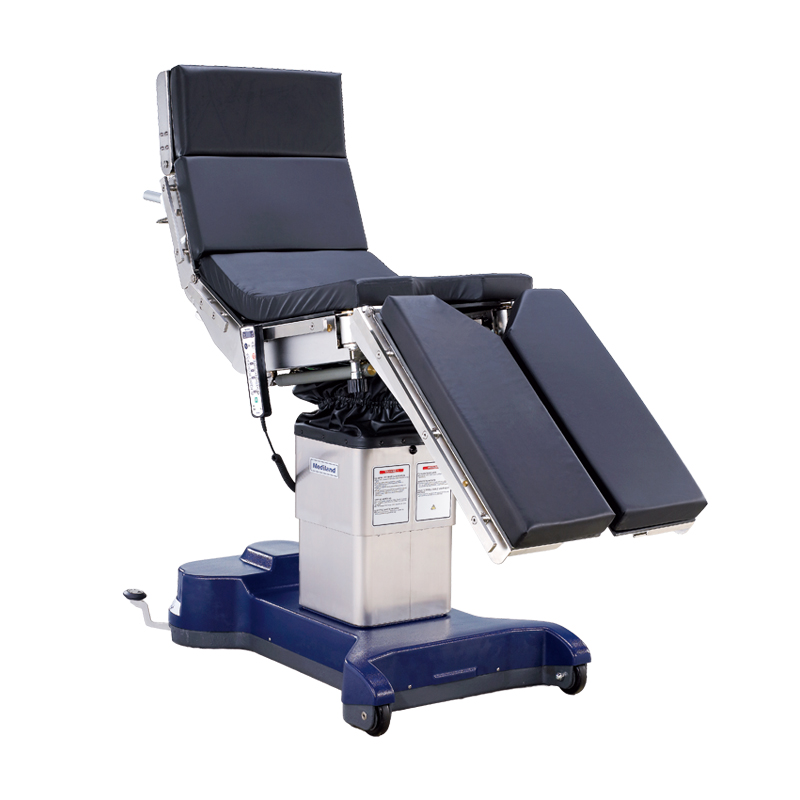

C200 Electro-hydraulic Operating Table
Duo power system allows the table to be operated precisely by manually or electrically.
DUO POWER SYSTEM
Reliable table performance in any environment
C200 is known for its diversity and durability with 3 different tabletop models. It offers either manual or electric-driven operating modes by the pedal shaft selector thanks to the duo power system. In special scenarios such as military and disaster medicine, C200 provides brilliant surgical support without depending on any electricity.
1
Convenient Control by the Pedal Shaft Selector
The pedal shaft selector located at the head-end offers convenient operation of the tabletop positions with a clear interface.
2
The Ultra-low Table Height is Ideal for Specialized Surgery
The tabletop can be located in an ultra-low position from 52cm to 102 cm for the surgical specialty which needs to sit for long-time operation (Applicable to /N type optional functions).
3
30 cm Longitudinal Sliding for Ideal C-arm Coverage
Longitudinal electrical sliding towards the head section allows better X-ray coverage without the need to reposition the patient (Applicable to /S type optional functions).
4
Highly Durable Table Bases
The stainless steel central column is easy to clean, and the high resistible and robust base cover by ABS plastic guarantees its endurance.
| Specification/Model |
|---|
| Carbon Fiber Kidney Elevator |
| Electrical Sliding |
| Table Length |
| Table Width (without side rails) |
| Table Height (without mattress) |
| Trendelenburg/Reverse Trend |
| Lateral Tilt (L / R) |
| Head Section (Up / Down) |
| Shoulder Section (Up / Down) |
| Back Section (Up / Down) |
| Leg (Up / Down) |
| Leg (Open / 2 plates) |
| Weight Capacity |
| C200 | C200K | C200E |
|---|---|---|
| N/A | 120 mm | N/A |
| 300 mm ( /S optional function) | ||
| 2,071 mm | 2,072 mm | |
| 520 mm | ||
| 680~1,120 mm 520~1,020 mm ( /N optional function) | ||
| 30° / 30° 26° / 26° ( /N optional function) | ||
| 20° / 20° | ||
| 60° / 90° | ||
| N/A | 40° / 50° | |
| 80° / 50° | ||
| 20° / 90° | ||
| 0°~180° | ||
| 227 kg / 500lbs | ||
| Configuration |
|---|
| MODEL |
| C200 (Standard) |
| C200K (With Kidney Elevator) |
| C200E (With Shoulder Section) |
| OPTIONAL FUNCTIONS | ||
|---|---|---|
| /S | /N | /B |
| sliding | low profile tabletop | Built-in batteries |
| sliding | low profile tabletop | Built-in batteries |
| sliding | low profile tabletop | Built-in batteries |
Accessories
A VARIETY OF ACCESSORIES FOR YOUR CHOOSE
