Emax280 Electric Surgical Table
C200 Electro-hydraulic Operating Table
Duo power system allows the table to be operated precisely by the pedal shaft selector and foot pump lever either manually or electrically.
CE
ISO9001
ISO13485
DUO POWER SYSTEM
3 TABLETOP MODELS
C200 is known for its diversity and durability with 3 different tabletop models. It offers either manual or electric-driven operating modes by the pedal shaft selector thanks to the duo power system.
In special scenarios such as military and disaster medicine, C200 provides brilliant surgical support without depending on any electricity.
Feature
- Multiple section tabletop. (standard back section or with a shoulder section)
- Optional sliding shift function.
- Pedal-operated selector and foot pump lever provide easy and convenient operating performance.
- Ultra-low table height selectable.
1
Selectable Operation Modes
Thanks to the DUO power system, the C200 can be operated by the foot pump lever even without external power.
2
Convenient Control by the Pedal Shaft Selector
The pedal shaft selector located at the head-end offers convenient operating of the tabletop positions with a clear interface.
3
The Ultra-Low Profile of Table Height
The tabletop can be located in an ultra-low position from 52cm to 102 cm for the surgical specialty which needs to sit for long-time operation. (N type only)
4
Durability
The stainless steel frame is easy to clean, and the high resistible and robust base cover by ABS plastic guarantees its endurance.
5
Longitudinal Sliding Displacement for Ideal C-arm Coverage
Longitudinal electrical sliding towards the head section of up to 30cm allows better access for C-arm without the need to reposition the patient. (S type only)
6
Equipped with Internal X-ray cassette tunnels
A built-in 14” internal X-ray cassette tunnels design at the head and pelvic sections facilitates X-ray photographing.
| SPECIFICATION |
|---|
| Weight Capacity |
| Table Length |
| Table Width (without side rails) |
| Table Height (without mattress) |
| Trendelenburg/Reverse Trend |
| Lateral Tilt (L / R) |
| Head Section (Up / Down) |
| Shoulder Section (Up / Down) |
| Back Section (Up / Down) |
| Leg (Up / Down) |
| Leg (Open / 2 plates) |
| Kidney Elevator (Carbon Fiber for excellent radiolucent) |
| Longitudinal Sliding |
| C200 | |
|---|---|
| 227 kg / 500lbs (max) | |
| 2,070 mm | |
| 520 mm | |
| 680~1,120 mm 520~1,020 mm ( /N optional function) | |
| 30° / 30° 26° / 26° ( /N optional function) | |
| 20° / 20° | |
| 60° / 90° | |
| 40° / 50° (E model) | |
| 80° / 50° | |
| 20° / 90° (E model) | |
| 0° / 180° | |
| 120 mm (K model) | |
| 300mm ( /S optional function) | |
| Configuration |
|---|
| MODEL |
| C200 (Standard) |
| C200K (With Kidney Elevator) |
| C200E (With Shoulder Section) |
| OPTIONAL FUNCTIONS | ||
|---|---|---|
| /S | /N | /B |
| sliding | low profile tabletop | Built-in batteries |
| sliding | low profile tabletop | Built-in batteries |
| sliding | low profile tabletop | Built-in batteries |
Accessories
A VARIETY OF ACCESSORIES FOR YOUR CHOOSE
Related products
PA19.03 Cassette Top for P1080
Removable cassette top mount onto operating table, covering its full length and width.
Consists of four radiolucent sections: head, back, seat, and foot. Velcro strips are provided for pad attachment; use with existing table mattresses.

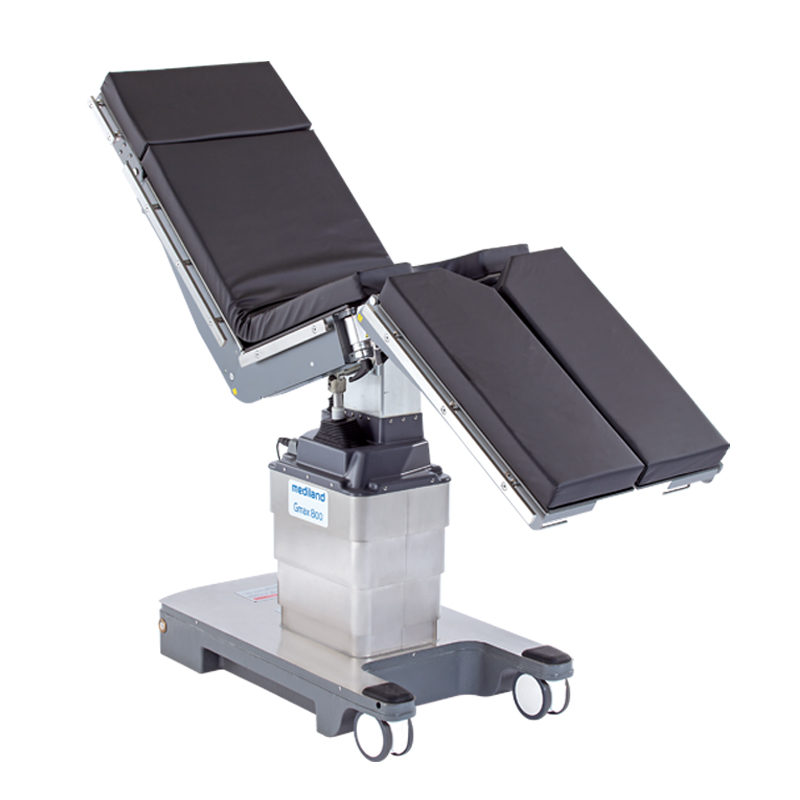

Gmax800 Electric Surgical Table
