With ultra-low tabletop height and excellent weight capacity, C600 is a versatile operating table and strongly compatible with various accessories for all kinds of surgical needs.
CE
ISO9001

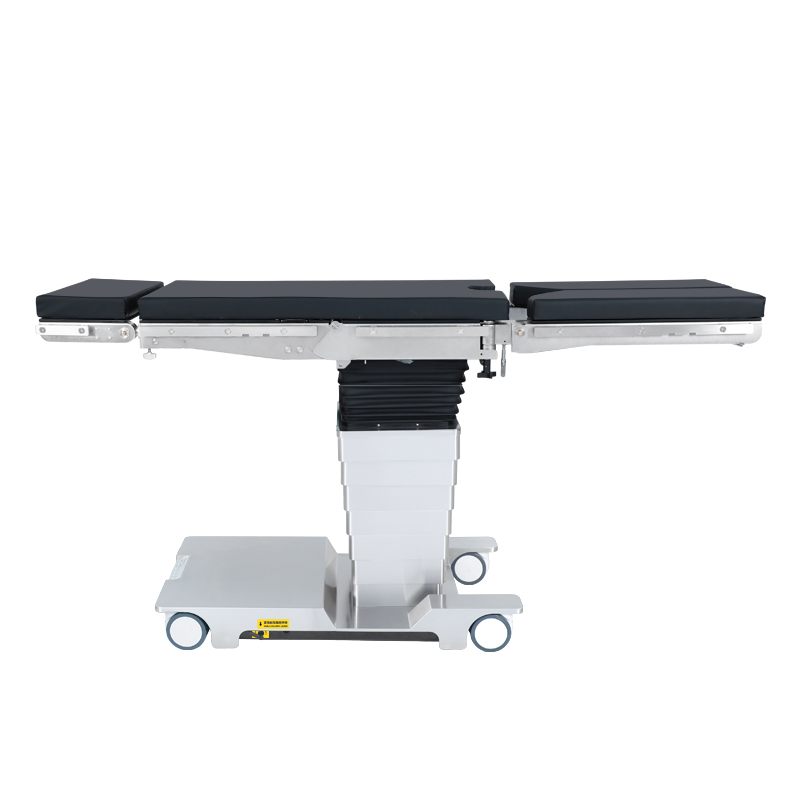

C600 Electro-hydraulic Operating Table
C660 Electro-hydraulic Operating Table
The 50mm table height stroke satisfies the expected performance for surgery.
Advanced Surgical Performance
Ultra-low positioning for maximum clinical flexibility
Built on the solid foundation of the C Series. Designed for different surgical needs, C660 is an upgraded electro-hydraulic operating table. It offers interchangeable head-to-leg adjustment, which is beneficial for imaging purposes. The ultra-low tabletop is particularly advantageous for specific surgery. Surgeons value its flexibility, especially during long-hour surgery. The table's joints are user-friendly and can be easily adjusted, providing convenience for medical professionals and improving workflow efficiency.
1

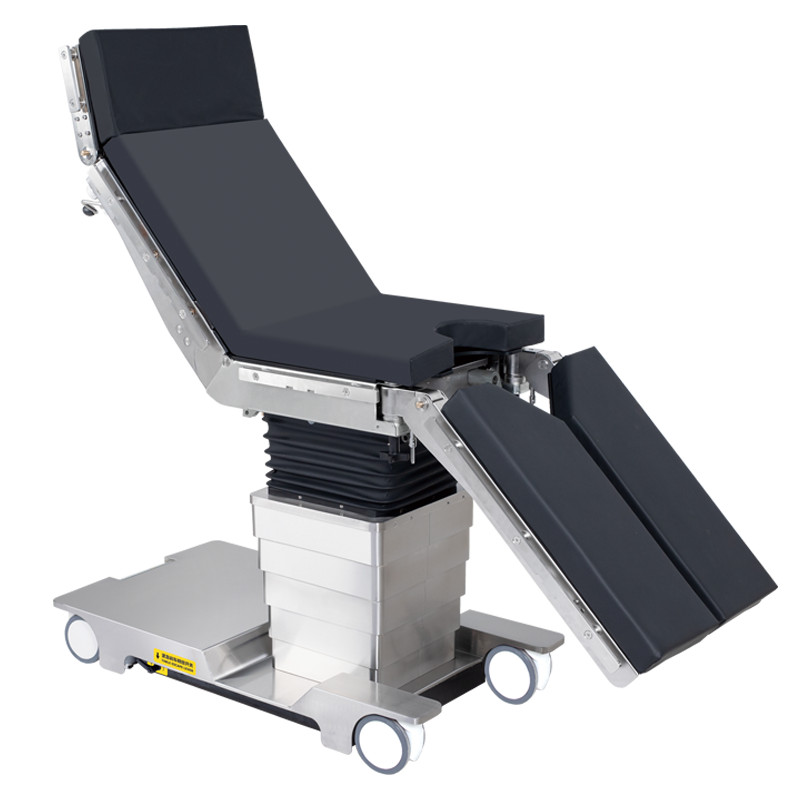

Ultra-Low Tabletop Design for Multi-Specialties
The table can be lowered to a height of 520mm. 50mm stroke provides a more comfortable and better ergonomic working environment for both standing and sitting surgery during long-hour surgeries (Applicable to N model).
2
Interchange for Head and Leg Section Adjustment
With up to 350mm electric sliding and interchange of the head and leg modules, the table enables a great imaging area with ideal 1,584mm access for the C-arm (Applicable to S model).
3
Built-in Carbon Fiber Kidney Elevator
Kidney bridge adjustment allows up to 120mm. The Carbon-fiber materials for excellent radiolucency, delivering exceptional X-ray transparency for superior imaging capabilities (Applicable to K model).
4
Simple Link Design for Effortless Replacement
The design allows you to easily and safely replace the head and foot segment modules by pressing with your thumb.
5
The Base Structure Offers Optimal Foot Room
The ergonomic groove design provides surgeons with enough leg room to access the surgical site. The stainless steel column and base are easy to clean for better infection control.
6
Giant Swivel Castors for Smooth and Flexible Movement
Equipped with four swivel castors for easier movement toward any direction, ensuring fast and convenient table positioning for the medical team.
7
Auxiliary Control System Provides Operational Flexibility
Auxiliary control system with clear action indications prevent operational downtime in the event of a primary control system breakdown and ensure continuous table operation.
| Specification / Model |
|---|
| Carbon Fiber Kidney Elevator (K) (120mm) |
| Electrical Sliding (S) (350mm) |

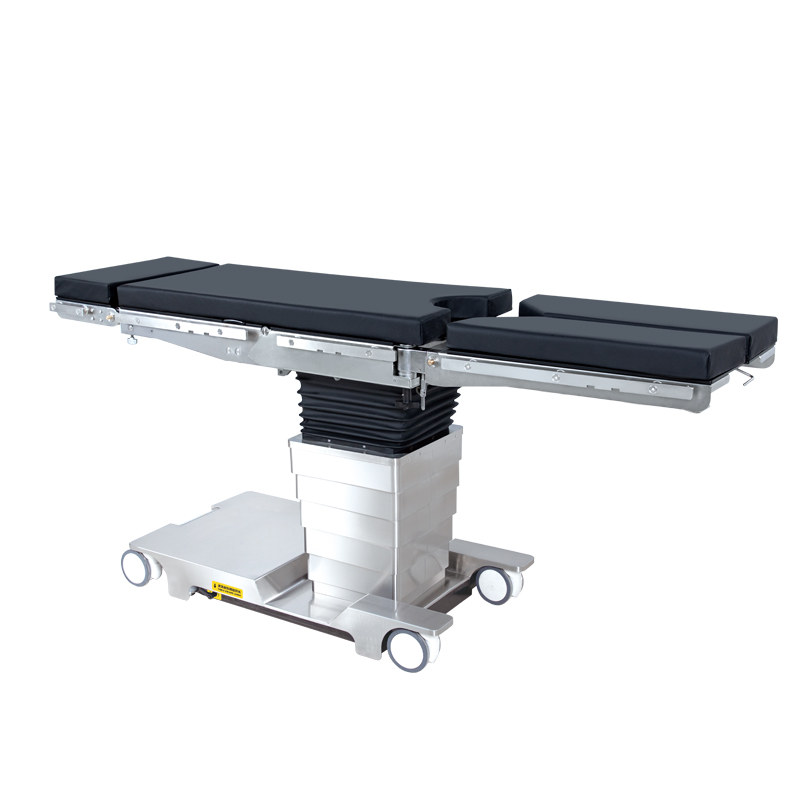

| Auto-leveling (D) |
| Low Profile Tablettop (N) |
| Table Length |
| Table Width (without side rails) |
| Table Height (without mattress) |

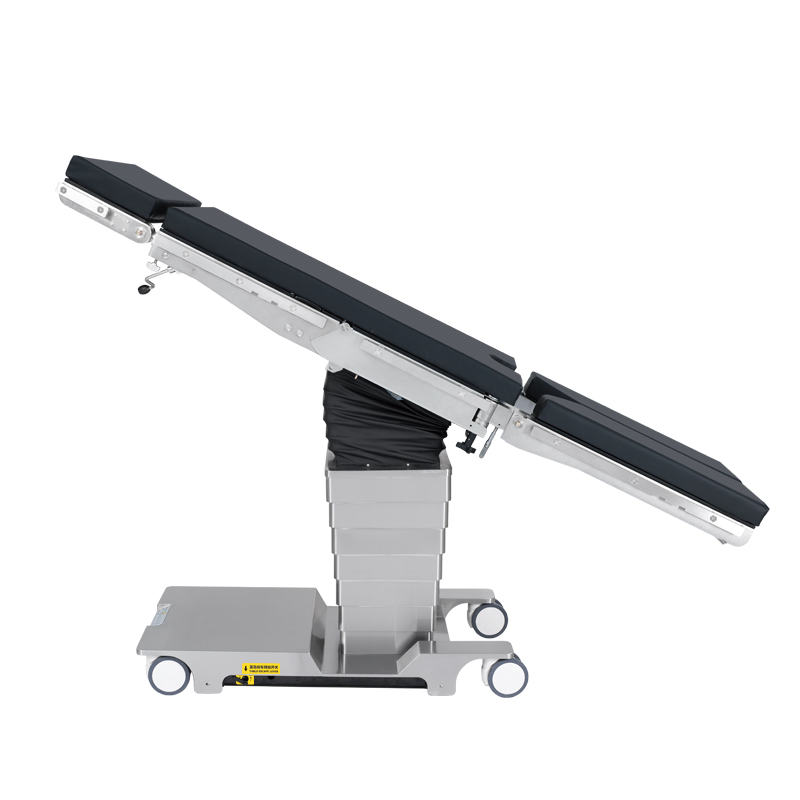

| Trendelenburg / Reverse Trend |
| Lateral Tilt (L / R) |
| Head Section (Up / Down) |
| Back Section (Up / Down) |
| Leg (Up / Down) |
| Leg (Open / 2 Plates) |
| Flex / Reflex |
| Weight Capacity |
| C660K | C660K/S | C660K/SD | C660K/SND | C660/S | C660/SN | C660/SD | C660/SND | C660/N | C660/ND |
|---|---|---|---|---|---|---|---|---|---|
| ● | ● | ● | ● | ||||||
| ● | ● | ● | ● | ● | ● | ● | |||
| ● | ● | ● | ● | ● | |||||
| ● | ● | ● | ● | ● | |||||
| 2,072 mm | |||||||||
| 520 mm | |||||||||
| 680~1,120 mm | 520~1,020 mm | 680~1,120 mm | 520~1,020 mm | 680~1,120 mm | 520~1,020 mm | ||||
| 30° / 30° | 26° / 26° | 30° / 30° | 26° / 26° | 30° / 30° | 26° / 26° | ||||
| 20° / 20° | |||||||||
| 60° / 90° | |||||||||
| 80° / 50° | |||||||||
| 20° / 90° | |||||||||
| 0°~180° | |||||||||
| 230° / 100° | |||||||||
| 454 kg / 1000 lbs | |||||||||
