QuadLED
Put Surgeon's experience in surgical lighting with our mildest and most advanced multi-colored chips surgical light−designed to revolutionize modern surgery and provide unparalleled clarity and precision. QuadLED provides the solution for precise and efficient surgical illumination that is gentle on the visual experience.
CE
ISO9001
ISO13485
IEC60601-1，IEC60601-1-2，IEC60601-2-41
1
Gentle Illumination: iCare Mode Caring For Your Eyes
Groundbreaking iCARE Mode, a fusion of clinical insight and innovation powered by our Inner Mixing Color technology. This advanced system delivers a soft, evenly diffused light that reduces harsh contrasts, while precise control of illuminance and color temperature ensures a comfortable visual environment. iCARE Mode enhance surgeons' performance elevate surgical precision and comfort where innovation meets eye care.
2
Inner Mixing Color technology
Inner color mixing system provides variable color-temperature setting from 3000-5000K. Each lens emits a single color light source synchronically, eliminating surgical error under different shades of color light source. The light pattern can be easily adjusted by the sterile handle and LCD control. The latest LED lens technology assures adjustable homogenous light field with 5-stage adjustment from 160-350mm.
3

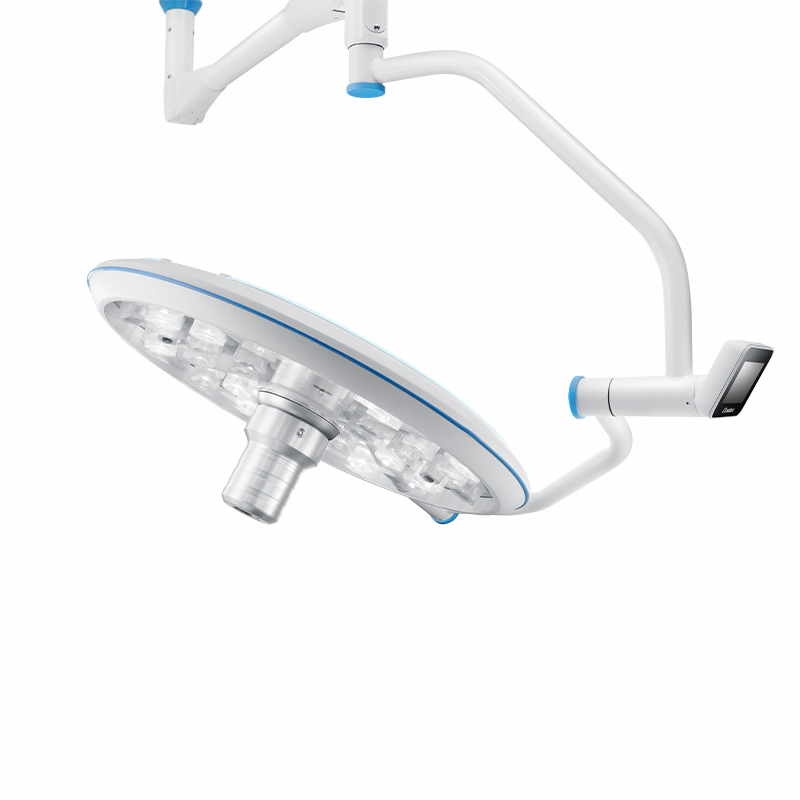

Modular design minimizes setup time
Easy installation of 4K in-light camera comes with a transparent sterile handle and detachable in-light camera can be precisely positioned on the light head which is attached to any QuadLED series system to enable recording of surgery documentary with 4K clarity. One camera module can be shared with any in-room surgical lights without special engineering support.
4
Dynamic Shadow Management provides effective Illumination
Multiple light sources with Dynamic Shadow Management assure a consistently clear and homogenous light field during the surgery activities that are otherwise often obstructed by the surgeon's head and hands.
5

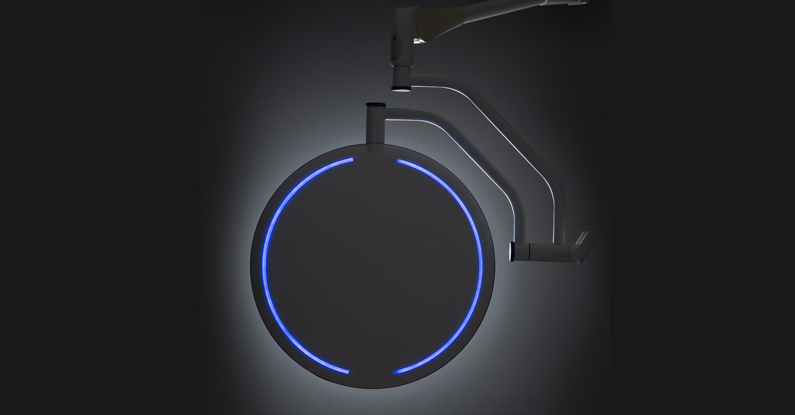

Ambient Light Options for MIS Procedures
Offering green or white colored ambient lighting depends on surgeon needs. During minimally invasive surgery, it can reduce surgeon’s eye glare while enhance clarity and contrast on monitors,optimizing visual experience.
6

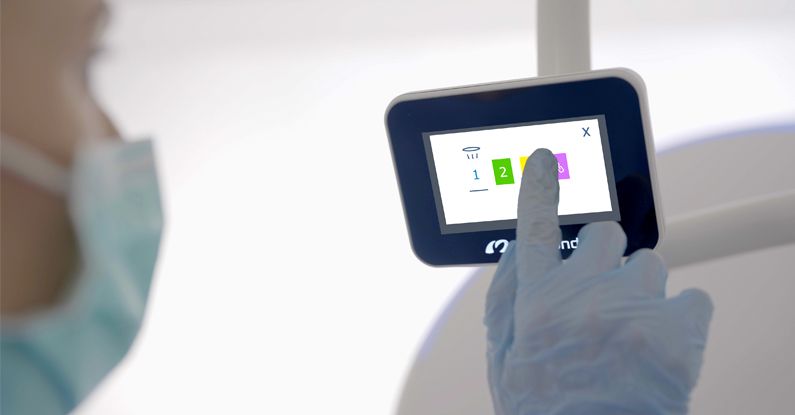

Wireless Remote/Synchronize Control
Wireless Control features support synchronized or independent operation, as well as remote control, offering enhanced flexibility and efficiency during surgical procedures. Through frameless 4.3”touch panel with clear graphic displays and color labels, making it more convenient operation for personnel.
7
Wireless Wall Control (Optional)
Three color-coded markings on the light heads and control panel ensure precise identification and control of individual lights.Through preset functions, enable lighting preferences to be saved and recalled based on surgical needs and user preferences.
| Features / Model |
|---|
| Central illuminance Ec (at 1m distance) (Lux) |
| Color Temperature (Kelvin) |
| Color Rendering Index (CRI) |
| Red Color Index (R9) |
| Radiant Power/Intensity Ee/Ec (mW/m2 Lux) |
| Light Field, d10(mm) |
| Light Field, d50 (mm) |
| Depth of illumination (L1+L2) |
| Pattern Size |
| Shadow Dilution |
| Ingress Protection Rating |
| Number of Light Sources |
| QuadLED SERIES |
|---|
| 160,000 |
| 3,000~5,000 |
| 97 |
| 97 |
| <3.6 |
| 310 mm |
| 165 mm |
| 600/750 |
| 16~35 |
| 77% (One Mask) 48% (Two Mask) 100% (Tube) |
| IP54 |
| 160 |

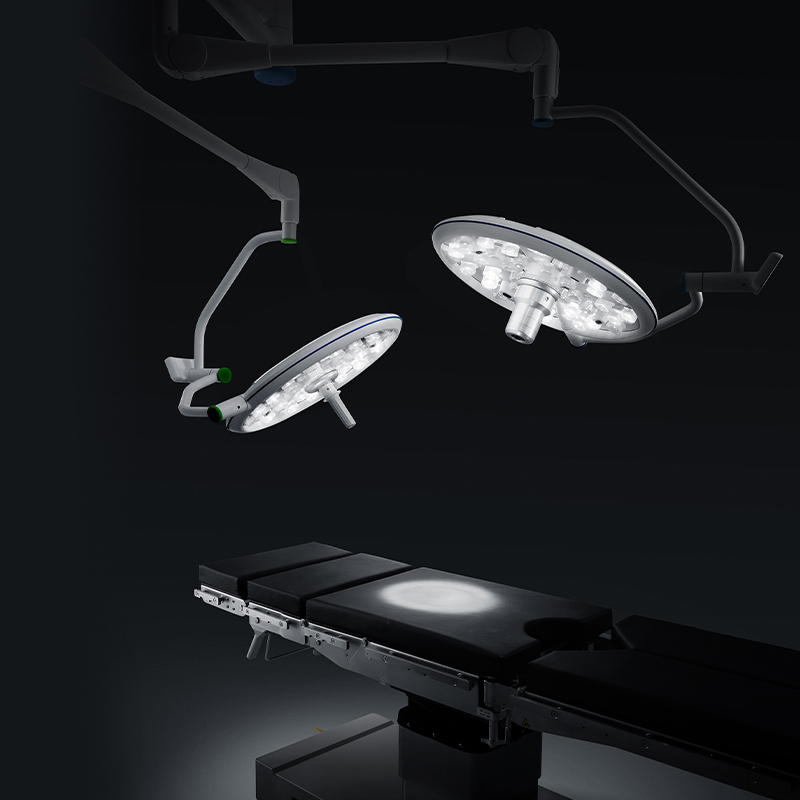

| Configuration |
|---|
| Single Arms |
| Dual Arms |
| Triple Arms |
| QuadLED |
|---|
| QuadLED6 |
| QuadLED66,6B,6A |
| QuadLED666,66A,66B,B6A |
