OceanLED- surgical lights, LED lights, operation room lighting, eyecaring, double reflector system

OceanLED focuses on next-generation lighting systems, featuring a patented double reflector technology with inner-colored mixing lighting system. This innovation seamlessly integrates LEDs with varying colors, delivering uniform and soft illumination. With the exclusively developed iCARE mode, it reduces intense contrasts in the surgical area, bringing an unprecedented visual experience to surgical teams.

CE

ISO9001

ISO13485

IEC60601-1，IEC60601-1-2，IEC60601-2-41

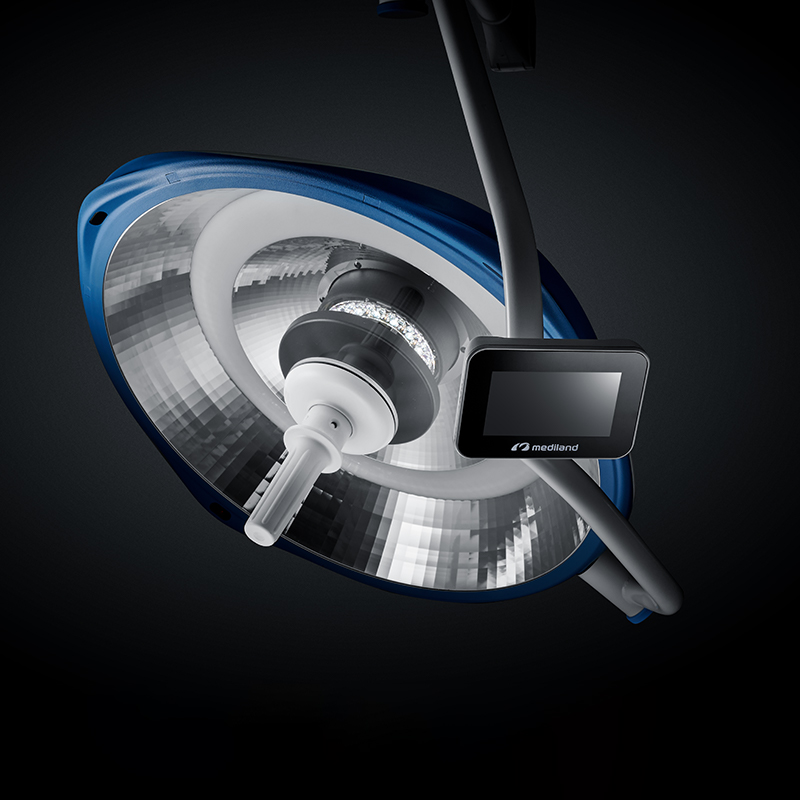

Precision Crafted Light with Patented Lighting Technology

This sophisticated design, featuring a patented ring-light source paired with a double reflector system, utilizes multireflection process to soften illumination and minimize shadow formation. It can achieve exceptional visibility, even in challenging, deep surgical cavities.

Optimal Depth of Light 77cm

Thanks to the patented dual-reflector design, it achieves excellent L1+L2 (60%) depth of illumination. This ensures a bright and uniform surgical light field at any working distance, providing consistent and reliable illumination for all surgical procedures.

Surgical Mode Selection

Four specialized modes adapt to various surgical applications. Each mode is designed to provide consistent illumination, ensuring optimal visibility within the surgical cavity and enhancing the efficiency and precision of the surgical team.

Adjustable MIS Ambient Light Color

The ambient lighting with color bar, allowing the surgical team to select their preferred color. Optimize visual experience while enhance clarity and contrast on monitors. (Applicable to i6)

Dynamic Shadow Management (DSM)

Quickly compensating for obstructions, the lighting system minimizes shadows, ensures that light is distributed evenly across surgical area.

Modular Handle Design Ensure Smooth Operation

The modular handle design allows for easy replacement with various functional modules, such as a standardsterile handle, camera control handle, and other expandable options. Also effortlessly adjust the light pattern or intensity by rotating the sterile handle.

Streamline Moderne Design Achieve Integrated Non-Sterile Handle

The wave-like light head features an optimal slope that minimizes airflow obstruction. Through the ergonomic handles along the light head edge also ensure comfortable operation, enabling smooth movement and precise positioning.

Wireless Remote/Synchronize Control

Wireless Control features support synchronized or independent operation with clear graphic displays and color labels, as well as remote control, offering enhanced flexibility and efficiency during surgical procedures.

Wireless Wall Control (Optional)

Through preset functions, enable lighting preferences to be saved and recalled based on surgical needs and user preferences.

Features / Model
Central illuminance Ec, Ref (at 1m distance) (Lux)
Central illuminance Ec, MI (at 1.02m distance) (Lux)
Color Temperature (Kelvin)
Color Rendering Index (CRI)
Red Color Index (R9)
Irradiance/luminous intensity Ee/Ec (mW/m2 Lux)
Light Field, d50/d10 (%)
Depth of illumination (L1+L2)(mm), 60(%)
Pattern Size, d10(cm)
Shadow Dilution(DSM)
Ingress Protection Rating
Number of LED

OceanLED 6/i6
140,000
≦160,000
3,500-5,000
97
97
3.7
65
770
18~32
100% (One Mask) 83% (Two Mask) 100% (Simulated Cavity)
IP54
60

Configuration
Single Arms
Dual Arms
Triple Arms

OceanLED
OceanLED6, i6
OceanLED66, i66, 6B, i6A, i6B
OceanLED666, 66B, i666, i66A, i66B, i6AB
