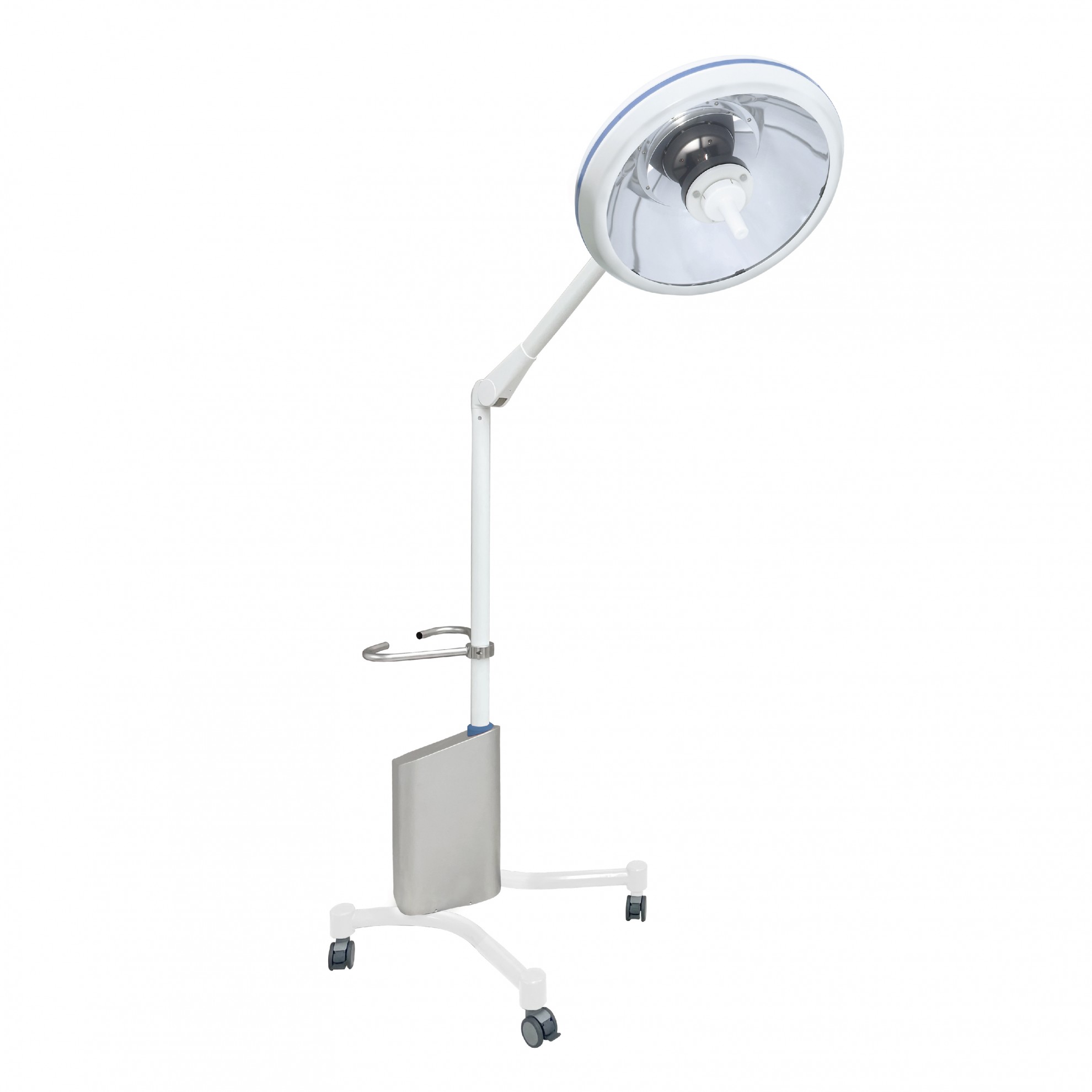

The MediLED Solo is a mobile surgical light which can be easily positioned that is supported by a slim and curve stand to get close to lighting area without obstructions.
CE
ISO9001
ISO13485
MediLED Solo
ORLED Mobile
ORLED mobile surgical light the light head patented double reflector designed no blue ray hazard, with traditional outlook, excellent quality LED light source module is launched by Mediland corporate with OSRAM.
ISO9001
ISO13485
IEC60601-1、IEC60601-1-2、IEC60601-2-41
ORLED
Mobile
ORLED provides high quality and safe light source by using the most advanced light emitting module LED array technology.
This high performance LED light source module is launched by Mediland in cooperation with OSRAM, which is certified by German laboratory.surgeons can now focus more on the illuminated field than concern about the possible eye impact caused by any harmful LED rays.

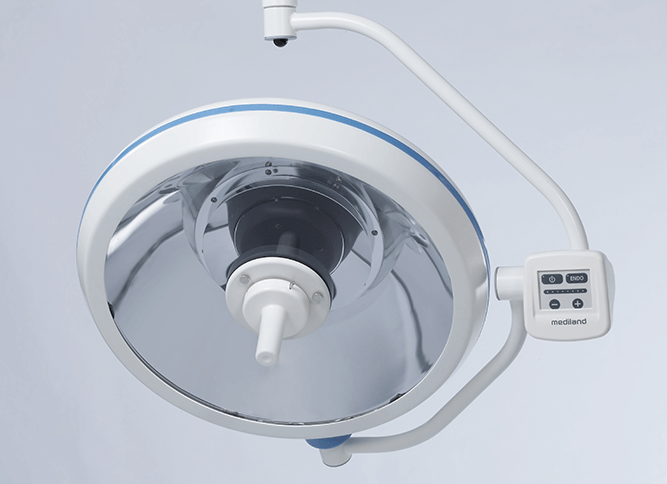

Features
- Patented double reflector designed obtain a glare free and showdown diluted beam profile.
- Meets photobiological safety standard no blue ray hazard.
- Low power consumption and superior thermal management.
- Outstanding CRI performance of 97.
1

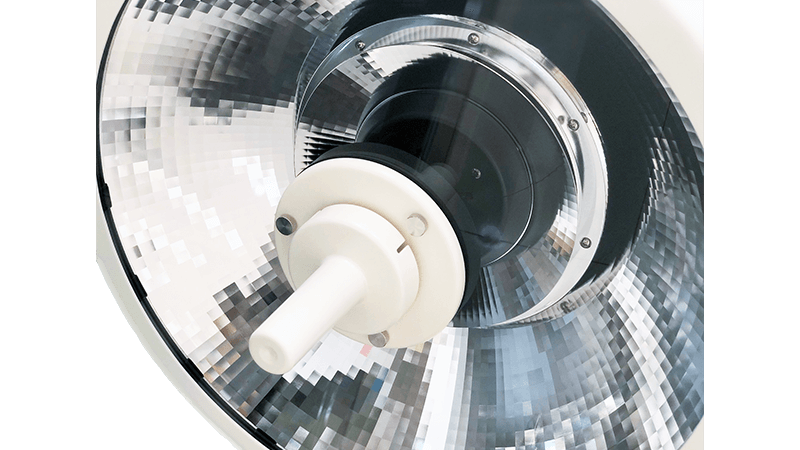

Patented Double Reflector Designed Provide Excellent Shadow Management
ORLED surgical lighting provides a consistent homogeneous light
Effectively controlling the light dispersion, the interference shadow can be eliminated and the subtle details of the surgical field can be retained.
2

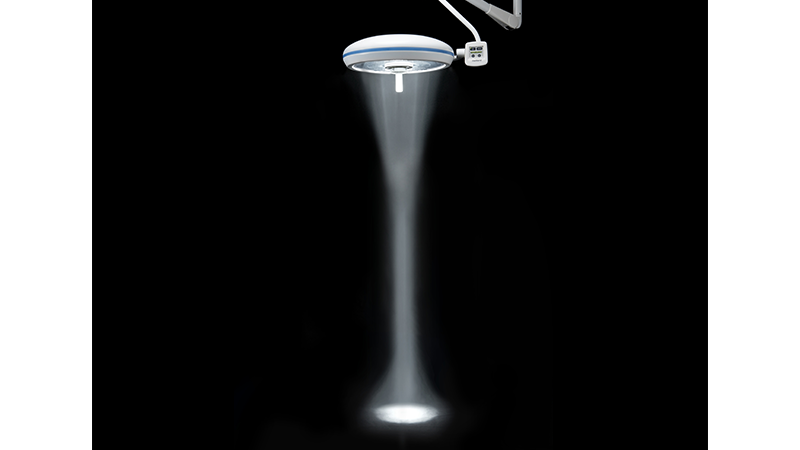

High-quality LED technology provides a Glare-Free And Deep Cavity Illumination experience
By applying the patented technology, ORLED provides long light column with homogeneous beam profile, The long light column is especially suitable for both deep and small incision applications.
3

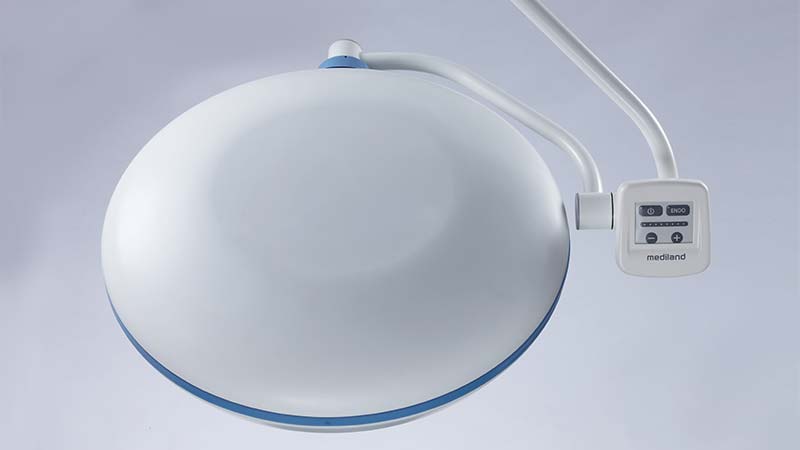

Compact Appearance Allows Easy Cleaning And Thus Better Infection Management
ORLED is the perfect choice for both modern operating room and low ceiling facility. sterile handle located at the front center allows surgeons to conveniently reach up and make adjustments.
4

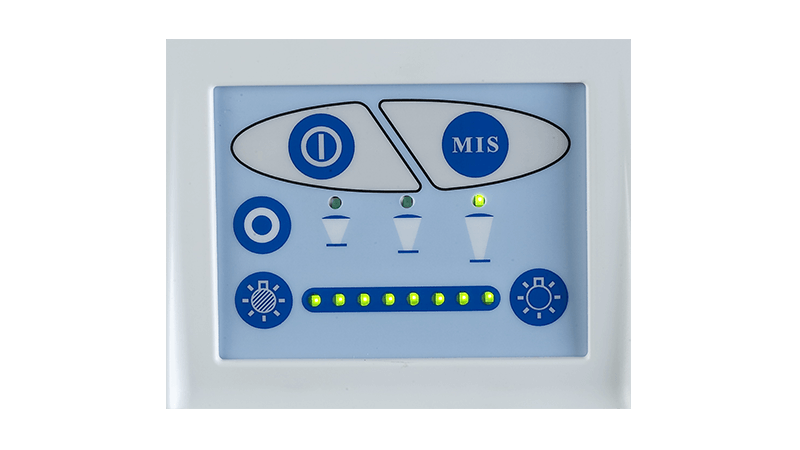

User Friendly Control Panel
User control lighting functions via mobile stand a practical control panel. Lighting intensity is adjusted in 8 dimming levels, ENDO option is also available as ambient lighting to dim the environment for minimal invasive surgery(MIS) use.
| Features/Model |
|---|
| Central Illuminance Ec (at 1m distance) |
| Color Temperature (Kelvin) |
| Color Rendering Index (CRI) |
| Red Color Index (R9) |
| Radiant Power/Intensity Ee/Ec (mW/m2 Lux) |
| Light Field, d10(mm) |
| Light Field, d50 (mm) |
| Depth of illumination (L1+L2) |
| Pattern Size |
| Working Distance |
| SlimLED SERIES |
|---|
| 160,000 |
| 4,300 |
| 97 |
| 90 |
| <3.6 |
| 160 mm |
| 85 mm |
| 135 mm |
| 16-26 |
| 70~150cm |
| Configuration |
|---|
| M : Mobile |
| MB : Mobile with built-in batteries |
| ORLED Mobile |
|---|
| ORLED M |
| ORLED MB |
