Mediled3 examination light delivers consistent color temperature , lighthead is equipped with a sterile handle which allows focus adjustment clean and simple design of the light serves all diagnostic needs.
MediLED 3 Examination Light
SunLED Examination Light
SunLED examination light provides a cool led light with shadow-free illumination and different function to control.
CE
ISO13485
MediLED
Examination Light
The SunLED Examination Light provides a cool LED light with shadow-free illumination and different function to control. in GYN, dermatology, orthopaedy, E.N.T., dentistry, outpatient clinic and general examination rooms.
Features
- Options for Ceiling Mount or wall & mobile stand
- Provide different ways to operate the light switch and light mode control more easily.
- Excellent performance of CRI and R9, this helps reveal the maximum perception of true tissue colors.
1
Flexible Illumination And
Control Interface
SunLED300/600 Series provide 35,000 and 70,000 lux of illumination, different control options are available, control knob or touch panel is located both at the side of the lighthead, which allows light ON/OFF and adjust the intensity.
2
Mobile Examination Light
With Built-In Battery To Support Various Space Applications
Emergency power back up can last 3 hours continuously to make sure that the operation can be done normally.
| Features/Model |
|---|
| Diameter of Lighthead (cm) |
| Central Illuminance Ec (at 1m distance) |
| Color Temperature (Kelvin) |
| Color Rendering Index (CRI) |
| Red Color Index (R9) |
| Radiant Power / Intensity Ee / Ec (mW / m2 lux) |
| Light Field, d10 (cm) |
| Light Field, d50 (cm) |
| Pattern Size (cm) |
| Number of LEDs |
| Lifetime of Bulbs (hour) |
| Power consumption (VA)@24VDC |
| SunLED 300 | SunLED 600 |
|---|---|
| 24 | |
| 35,000 | 70,000 |
| 4,000 | |
| 96 | |
| 97 | |
| 3.6 | |
| 15 | |
| 8.5 | |
| 15 | |
| 7 | |
| 50,000 | |
| 12 VA (max) | 24VA (max) |
| Configuration |
|---|
| M: Mobile |
| MB: Mobile with built-in batteries |
| W:Wall-mounted |
| C: Ceiling Mount |
| SunLED Examination Light |
|---|
| SunLED M |
| SunLED MB |

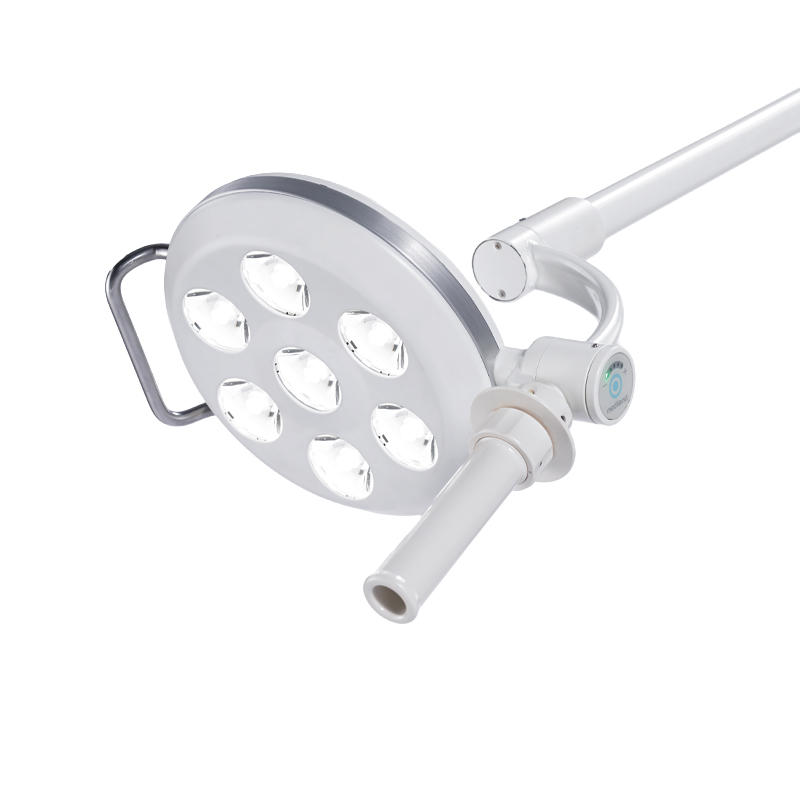

| SunLED W |

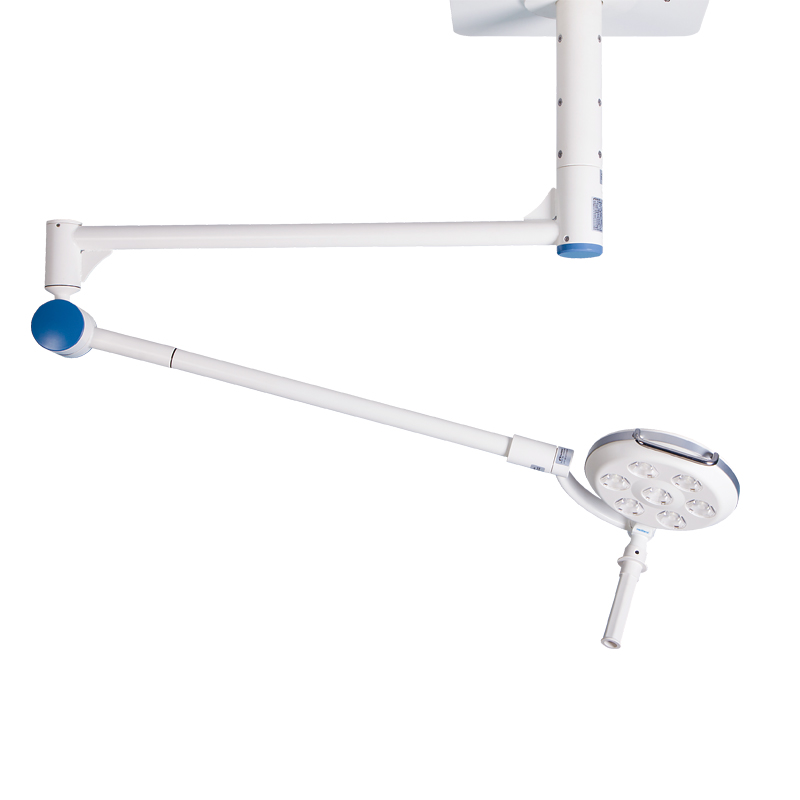

| SunLED C |
